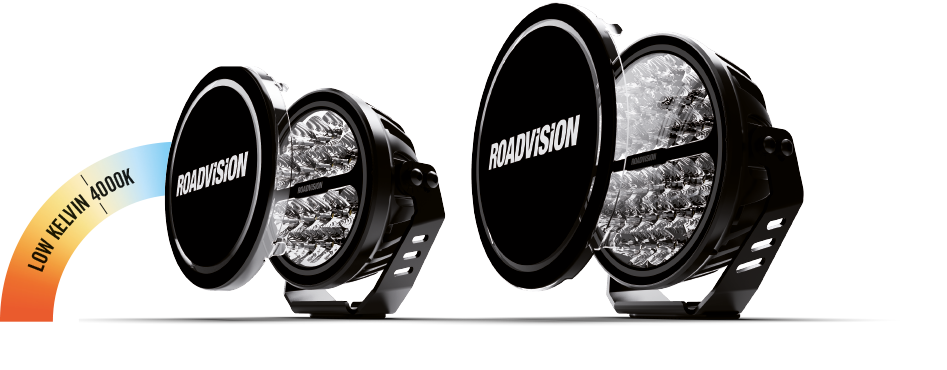

Roadvision’s Stealth PRO Low Kelvin Series Driving Lights deliver cutting-edge upgrades and a sleek modern appearance, making them the perfect choice for smaller SUVs and passenger vehicles. Maintaining the contemporary bezel-less design, the Stealth PRO Low Kelvin Series now features dynamic start-up Daytime Running Lights (DRL) and a stylish black cover with a dedicated DRL window, offering enhanced functionality and aesthetics. When not illuminated, the DRL seamlessly darkens, ensuring a sleek, understated look. Roadvision’s Stealth PRO Low Kelvin Series complement the range by featuring a warmer light colour and wider beam pattern, providing better visibility in wet and dusty conditions while dramatically reducing road sign flare. With black mounting hardware, the Stealth PRO Low Kelvin Series utilises up to 34 x 3W Osram LEDs to produce up to an impressive 9,594lm per light and 493m of beam penetration at 1 lux. Built to withstand the harshest conditions, these lights feature a lightweight yet tough aluminium housing and a durable polycarbonate lens. Powered by Roadvision’s Thermal Management Technology, the Stealth PRO Low Kelvin Series guarantees superior performance and durability in any environment.
THERMAL MANAGEMENT TECHNOLOGY
HALO DRL RING
MULTI-VOLT
10-30 VDC
POLYCARB LENS
COLOUR TEMP
IP PROTECTION
OVER/UNDER VOLTAGE PROTECTION
DEUTSCH CONNECTOR
REVERSE POLARITY PROTECTION
OSRAM LEDS
RADIO INTERFERENCE APPROVED
7 YEAR WARRANTY
RANGE FEATURES
- S7LK & S9LK Stealth PRO Series 7” & 9″ Driving Light
- Dynamic start-up DRL
- Includes Black cover with DRL windows
- Blackout mounting hardware
- 3W Osram LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & low current draw
- 50,000 hour LED lifespan with solid state technology
- Thermal Management Technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- IP68 & IP69K protection
- Over/under voltage, reverse polarity protection
- EMI/EMC radio interference approved
DIMENSIONS
RDL6701LKD BEAM DIAGRAM

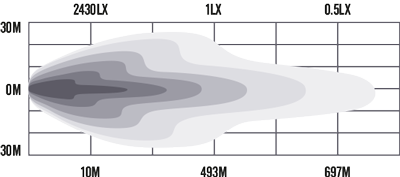

RDL6901LKD BEAM DIAGRAM
SPECIFICATIONS
| wdt_ID | Part Number | RDL6701LKD | RDL6901LKD |
|---|---|---|---|
| 1 | Description | 7” LED Driving Light 10-30V Round 74W Combination Beam | 9” LED Driving Light 10-30V Round 160W Combination Beam |
| 2 | Beam Pattern | Combination | Combination |
| 3 | Maximum Lumens per Light (pair) | 4,601lm (9,202lm) | 9,594lm (19,188lm) |
| 4 | Maximum Lux @ 10m per Light (pair) | 1,365lx (2,730lx) | 2,430lx (4,860lx) |
| 6 | Maximum Beam Distance @ 1lx per Light (pair) | 369m (522m) | 493m (697m) |
| 7 | Input Voltage | 10-30VDC | 10-30VDC |
| 8 | Maximum Watts | 74W | 160W |
| 9 | Number of LEDS | 16 x 3W Osram | 34 x 3W Osram |
| 10 | Current Draw @ 13.8V | 5.3 Amps | 11.64 Amps |
| 11 | Lens Construction | Polycarbonate | Polycarbonate |
| 12 | Housing Construction | Die-Cast Aluminium | Die-Cast Aluminium |
| 13 | Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug |
| 14 | Dimensions AxBxC | 192 x 78 x 195mm | 238 x 87 x 249mm |
ACCESSORIES
BPLC-1080
- 7″ Clear protective cover
- Suits RDL27, RDL37 & Stealth 7″
- Polycarbonate cover
- Clip on
- 1 year warranty
BPLC-1080A
- 7″ Amber protective cover
- Suits RDL27, RDL37 & Stealth 7″
- Polycarbonate cover
- Clip on
- 1 year warranty
BPLC-1090
- 9″ Clear protective cover
- Suits Stealth 9″
- Polycarbonate cover
- Clip on
- 1 year warranty
BPLC-1090A
- 9″ Amber protective cover
- Suits Stealth 9″
- Polycarbonate cover
- Clip on
- 1 year warranty
