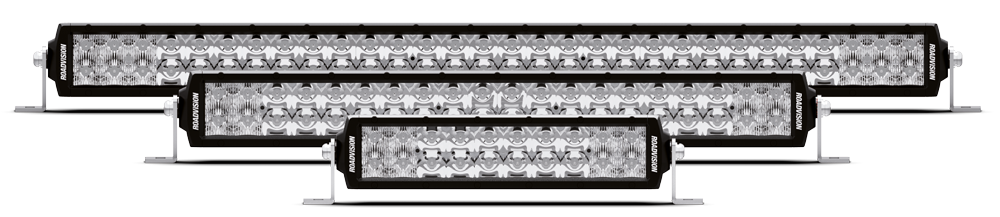

The Roadvision Essentials DRE2 Series LED bar lights are the ideal choice for those chasing value for money without compromising on quality. Utilising high performing 5W Osram LED’s, Thermal Management Technology, packaged in an IP68 rated housing and shielded behind a polycarbonate lens, these bar lights are built to endure the toughest conditions. The Essentials Series dual row LED bar lights produce up to 22157lm of instant light output. With the perfect combination of spot and driving optics, they produce combination style beam patterns reaching up to 797 meters @ 1 LUX. Available in the most common 12”, 22” & 32” lengths, they are a perfect entry level solution while still providing great output, durability and the perfect look for your rig.
THERMAL MANAGEMENT TECHNOLOGY
MULTI-VOLT
10-30 VDC
POLYCARB LENS
COLOUR TEMP
WATERPROOF
REVERSE POLARITY PROTECTION
OVER/UNDER VOLTAGE PROTECTION
DEUTSCH CONNECTOR
OSRAM LEDS
RADIO INTERFERENCE APPROVED
3 YEAR WARRANTY
RANGE FEATURES
- DRE2 Series dual row LED bar lights produce up to 22157lm of instant light output
- Available in 12”, 22” & 32” models
- 5W Osram LED’s produce super white light close to daylight
- Multi-volt 11-32V DC input & low current draw
- 50,000 hour LED lifespan with solid state technology
- Thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP68 rated
- Simple 2 wire installation with Deutsch plug
- Low profile slide & end mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

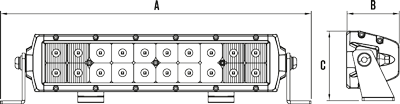

DIMENSIONS
RBL4121C
RBL4221C
RBL4321C
RANGE SPECIFICATIONS
| wdt_ID | Part Number | RBL4121C | RBL4221C | RBL4321C |
|---|---|---|---|---|
| 1 | Description | 12” LED Bar Light 11-32V 70W Combination Beam | 22” LED Bar Light 11-32V 140W Combination Beam | 32” LED Bar Light 11-32V 209W Combination Beam |
| 2 | Beam Pattern | Combination | Combination | Combination |
| 3 | Maximum Lumens | 7695lm | 14620lm | 22157lm |
| 4 | Maximum Lux @ 10m | 1723lx | 4240lx | 6360lx |
| 6 | Maximum Beam Distance @ 1LX | 415m | 650m | 797m |
| 7 | Input Voltage | 11-32VDC | 11-32VDC | 11-32VDC |
| 9 | Maximum Watts | 70W | 140W | 209W |
| 10 | Number of LEDs | 20 x 5W Osram | 40 x 5W Osram | 60 x 5W Osram |
| 11 | Current Draw @ 13.8V | 4.86 Amps | 9.72 Amps | 14.54 Amps |
| 13 | Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate |
| 14 | Housing Construction | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium |
| 12 | Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug |
| 15 | Dimensions AxBxC | 357 x 80 x 61mm | 612 x 80 x 61mm | 867 x 80 x 61mm |
BEAM DIAGRAM – RBL4121C

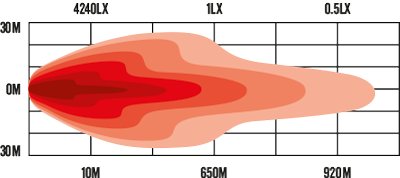

BEAM DIAGRAM – RBL4221C

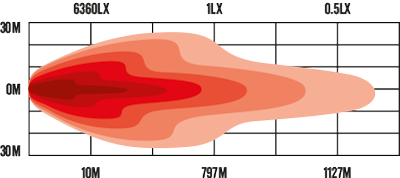

BEAM DIAGRAM – RBL4321C
