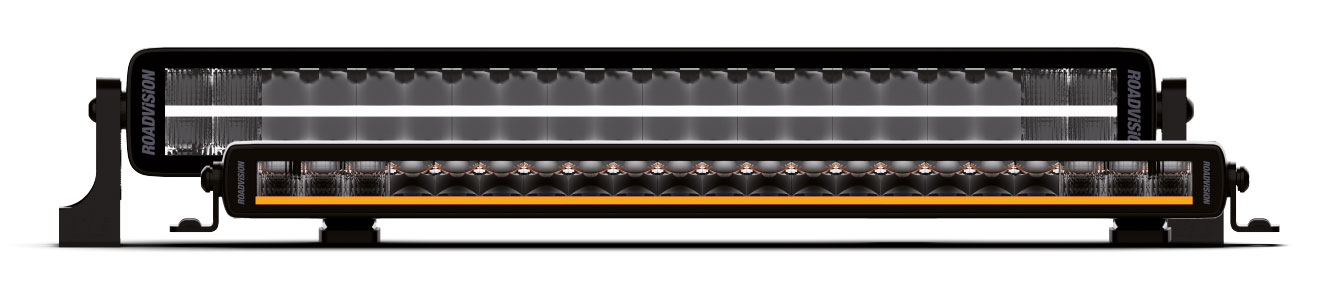

Engineered for those who demand nothing but the best, the ROADVISION Stealth Pro Series combines sheer power with cutting-edge technology. Featuring dual-coloured dynamic start up Daytime Running Lights, the Stealth Pro Series offers added safety and style with a customisable touch. ROADVISION’s Thermal Management System and Projector Beam Technology keeps performance at its peak – even in the most punishing conditions.
THERMAL MANAGEMENT TECHNOLOGY
MULTI-VOLT
10-30 VDC
POLYCARB LENS
COLOUR TEMP
IP PROTECTION
REVERSE POLARITY PROTECTION
OVER/UNDER VOLTAGE PROTECTION
HEAVY DUTY/ATP CONNECTOR
OSRAM LEDS
RADIO INTERFERENCE APPROVED
7 YEAR WARRANTY
RANGE FEATURES
- Dynamic start-up dual colour DRL
- Smoked lens appearance and blackout mounting hardware
- Available in 13” to 32” models
- 3W Osram LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & low current draw
- 50,000 hour LED lifespan with solid state technology
- Thermal management technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- IP68 & IP69K protection
- Adjustable side mounts & low-profile slide mounts
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
DIMENSIONS

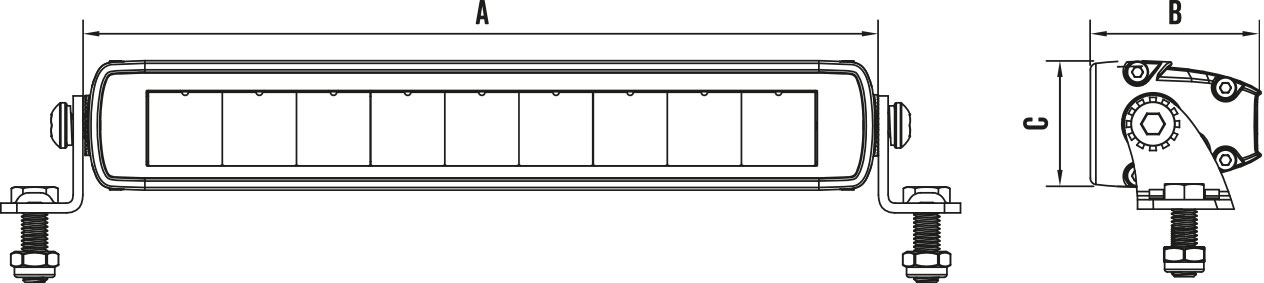

S40 Series

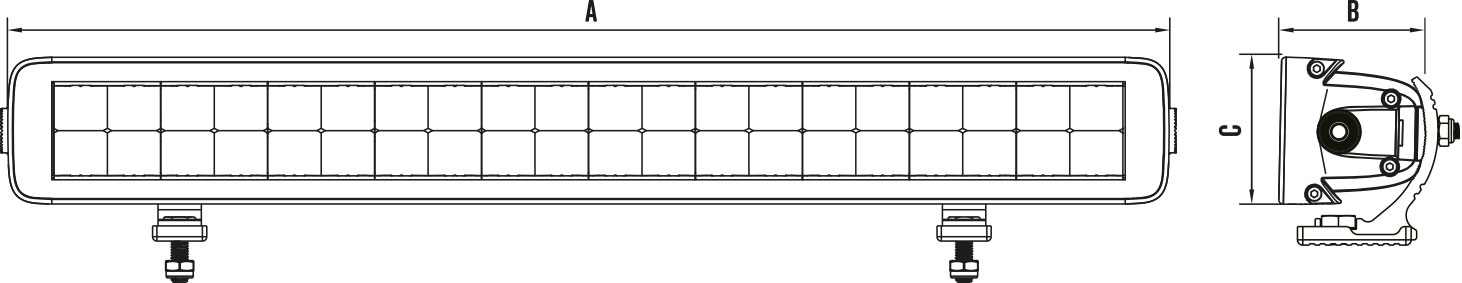

S70 Series
S40 SERIES – RANGE SPECIFICATIONS
ROADVISION’s S40 Pro Series is the ultimate compact long-range light bar solution for trucks, 4x4s, SUVs, licence plate and roof rack mounts—perfect for tight spaces where larger light bars just won’t fit. Engineered for highway performance, the S40 Pro focuses on long-range beam penetration with a lower intensity output, reducing glare while enhancing visibility at speed. The S40 Pro Series delivers exceptional lux performance in a minimal footprint—reaching up to 723m @ 1 lux from a 32” bar.
| wdt_ID | Part Number | RBL4013SCD | RBL4021SCD | RBL4032SCD |
|---|---|---|---|---|
| 1 | Description | S40 Stealth Pro Series 13" LED Light Bar | S40 Stealth Pro Series 21" LED Light Bar | S40 Stealth Pro Series 32" LED Light Bar |
| 2 | Beam Pattern | Projector Combo 6 Driving / 6 Spot | Projector Combo 6 Driving / 15 Spot | Projector Combo 6 Driving / 27 Spot |
| 3 | Maximum Lumens | 3218lm | 6332lm | 9181lm |
| 4 | Maximum Lumens @10m | 1730lx | 3260lx | 5227lx |
| 5 | Beam Distance @1lx | 416m | 571m | 723 |
| 6 | Input Voltage | 10-30 VDC | 10-30 VDC | 10-30 VDC |
| 7 | Maximum Watts | 49W | 88W | 138W |
| 8 | Number of LEDs | 12 x 3W Osram | 21 x 3W Osram | 33 x 3W Osram |
| 9 | Current Draw @13.8V | 3.57 Amps | 6.37 Amps | 10 Amps |
| 10 | Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate |
| 11 | Housing Construction | Aluminium | Aluminium | Aluminium |
| 15 | Wiring | 4 PIN Deutsch Plug | 4 PIN Deutsch Plug | 4 PIN ATP Plug |
| 16 | Dimensions AxBxC | 316 x 55 x 40mm | 523 x 55 x 40mm | 798 x 55 x 40mm |

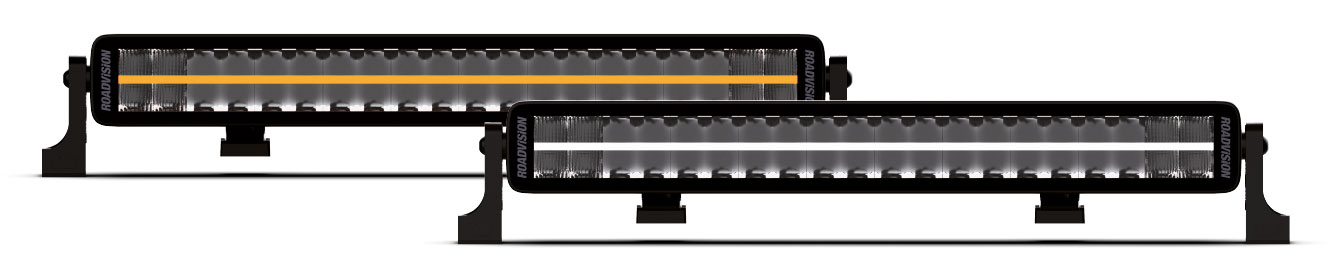

S70 SERIES – RANGE SPECIFICATIONS
Designed from the ground up for serious off-road enthusiasts and anyone chasing ultimate performance, the S70 Pro dual row light bars deliver the perfect blend of maximum light intensity and unrivalled beam penetration. The S70 Pro pumps out up to 14,337 lumens and reaching a mind-blowing 863m @ 1 lux from a single 30” bar.
| wdt_ID | Part Number | RBL7013SCD | RBL7021SCD | RBL7030SCD |
|---|---|---|---|---|
| 1 | Description | S70 Stealth Pro Series 13" LED Light Bar | S70 Stealth Pro Series 21" LED Light Bar | S70 Stealth Pro Series 30" LED Light Bar |
| 2 | Beam Pattern | Projector Combo 8 Driving / 16 Spot | Projector Combo 8 Driving / 32 Spot | Projector Combo 16 Driving / 44 Spot |
| 3 | Maximum Lumens | 6545lm | 10129lm | 14337lm |
| 4 | Maximum Lumens @10m | 2895lx | 5102lx | 7440lx |
| 5 | Beam Distance @1lx | 538m | 714m | 863m |
| 6 | Input Voltage | 10-30 VDC | 10-30 VDC | 10-30 VDC |
| 7 | Maximum Watts | 95W | 165W | 240W |
| 8 | Number of LEDs | 24 x 3W Osram | 40 x 3W Osram | 60 x 3W Osram |
| 9 | Current Draw @13.8V | 6.9 Amps | 12 Amps | 17.4 Amps |
| 10 | Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate |
| 11 | Housing Construction | Aluminium | Aluminium | Aluminium |
| 15 | Wiring | 4 PIN Deutsch Plug | 4 PIN ATP Plug | 4 PIN ATP Plug |
| 16 | Dimensions AxBxC | 357 x 67 x 70mm | 561 x 67 x 70mm | 815 x 67 x 70mm |
