Roadvision’s wiring kits provide a complete DIY solution, delivering a professional installation for driving lamps and light bars. Supplied with quality harnesses, relays, switches, plugs and connectors, they make installation quick and hassle-free. Our second-generation wiring kits feature smart electronics that automatically detect both positive and negative headlamp systems. The simple plug & play design works with halogen, HID, and LED bulbs—no complex modifications required.
12V & 24V VEHICLES
HEADLAMP SYSTEMS
PLUG & PLAY
RANGE FEATURES
-

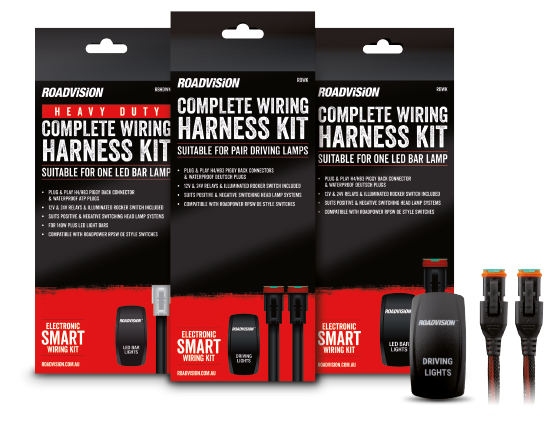

Complete plug & play wiring harness kits for driving lamps & light bars
-
Suitable for 12V & 24V vehicles
-
Plug & play H4/HB3 piggyback connector
-
Waterproof Deutsch or ATP connectors
-
Supplied with 12V & 24V relays
-
Fitted with illuminated rocker switches
-
Compatible with positive & negative switched headlamp systems
-
Compatible with all Roadvision RHBT Series High Beam Patch Harnesses
-
Models to suit Roadvision Standard Driving Lights Bars & Light Bars
-
Simple DIY installation
PART NUMBERS

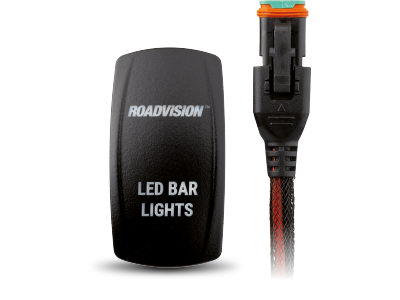

RBWK
Universal Single Bar Lamp Wiring Harness
- 2 Pin Deutsch Connector
- Bar Lamp Rocker Switch
- Suits up to 140W Light Bars

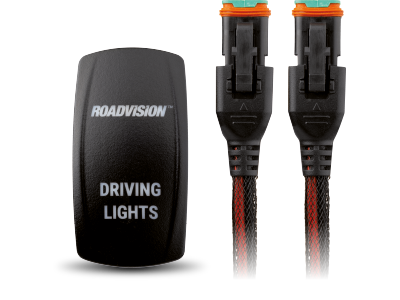

RDWK
Universal Driving Light Wiring Harness
- 2 x 2 Pin Deutsch Connectors
- Driving Lamp Rocker Switch
- Suits Pair of Driving Lights

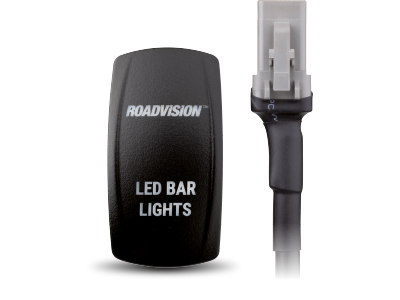

RBHDWK
Universal Heavy Duty Single Bar Lamp Wiring Harness
- 2 Pin ATP Connector
- Bar Lamp Rocker Switch
- Suits 140 – 300W Light Bars
WIRING DIAGRAMS

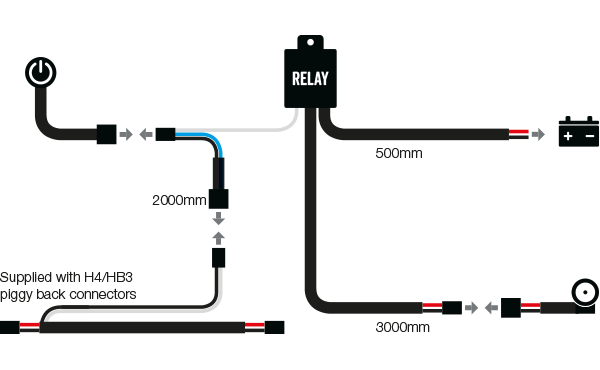

RBWK

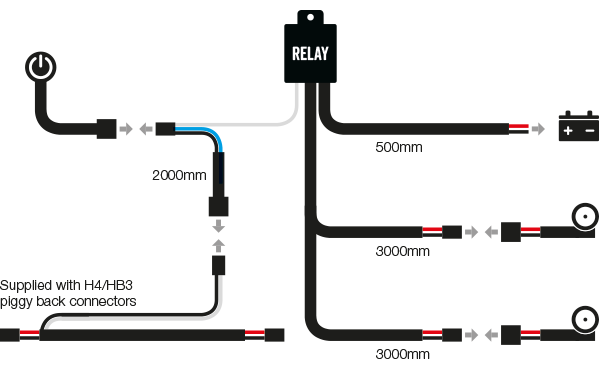

RDWK

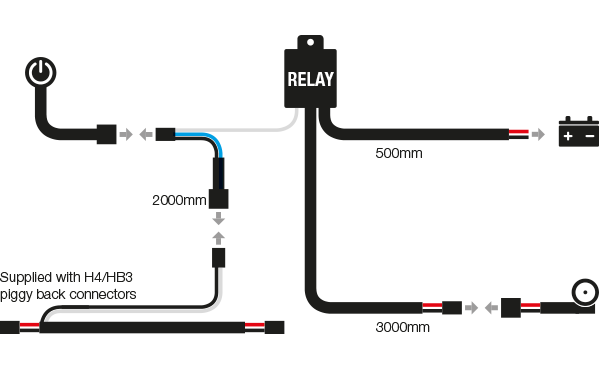

RBHDWK
