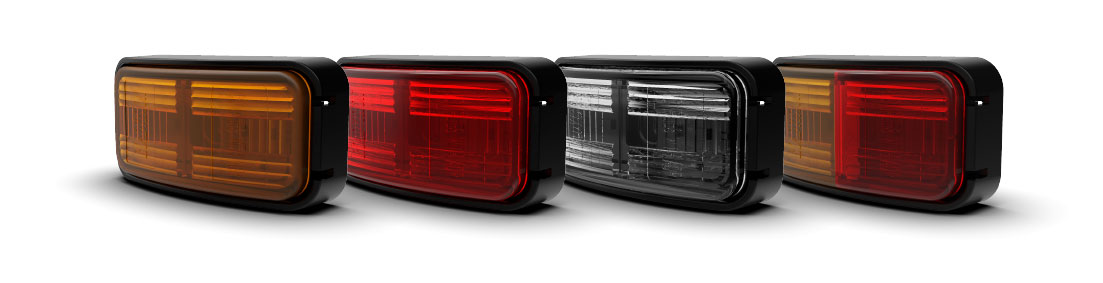

The ROADVISION BR8 Series LED Marker/Indicator Lamps are the ultimate fit-and-forget lighting solution. Brighter, safer, stronger and fully ADR approved, they deliver outstanding performance with maintenance-free LED technology. Producing more light while consuming only a fraction of the power, they provide exceptional visibility and road safety. Designed to last, the BR8 Series features unbreakable polycarbonate lenses and heavy-duty ABS housings that are both dustproof and waterproof, with a rated lifespan of 100,000 hours. With ROADVISION BR8 Series LED Marker/Indicator Lamps, you get long-lasting durability, easy installation, and peace of mind.
MULTI-VOLT
10-30 VOLT
POLY CARBONATE LENS
POLY CARBONATE HOUSING
ADR APPROVED
WEATHERPROOF
5 YEAR WARRANTY
RANGE FEATURES
- Multi-volt 10-30V input & low current draw
- Brighter than conventional incandescent systems
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Polycarbonate housing & sealed polycarbonate lenses
- Water and dust proof
- Simple surface mount
- Vibration resistant
- Supplied pre-wired
- ADR approved
RANGE SPECIFICATIONS
| wdt_ID | Part Number | BR8A | BR8R | BR8W | BR8AR |
|---|---|---|---|---|---|
| 1 | Description | Clearance Lamp Rectangle Amber | Clearance Lamp Rectangle Red | Clearance Lamp Rectangle White | Clearance Lamp Rectangle Red/Amber |
| 2 | Functions | Clearance | Clearance | Clearance | Clearance |
| 3 | Voltage Input | 10-30V | 10-30V | 10-30V | 10-30V |
| 7 | Number of LED's | 4 Amber LED's | 4 Red LED's | 4 White LED's | 2 Red & 2 Amber LED's |
| 9 | Current Draw Amps | 0.05A @ 13.8V | 0.05A @ 13.8V | 0.05A @ 13.8V | 0.05A @ 13.8V |

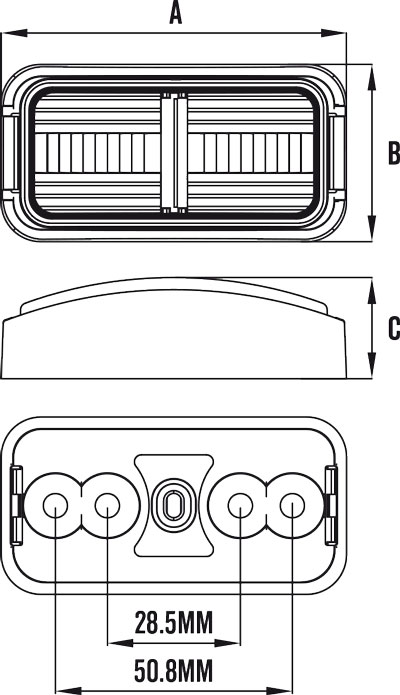

| 10 | Dimensions AxBxC | 74x38x22mm | 74x38x22mm | 74x38x22mm | 74x38x22mm |
| 11 | Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |
| 12 | Housing Construction | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |
| 13 | Mounting Hole /Cut Out | 28.5mm/50.8mm | 28.5mm/50.8mm | 28.5mm/50.8mm | 28.5mm/50.8mm |
| 15 | Cable Length | 300mm Tinned Copper | 300mm Tinned Copper | 300mm Tinned Copper | 300mm Tinned Copper |
| 16 | CTA Approval | CTA-062087 | CTA-062088 | CTA-062089 | CTA-062090 |
| 19 | Wiring | Earth - White, Marker - Brown |
Earth - White, Marker - Brown |
Earth - White, Marker - Brown |
Earth - White, Marker - Brown |
