ROADVISION’s RVFRL2 Series safety line LED forklift safety lamps provide additional workplace health and safety protection… Amber rotating beacons and reverse alarms have been around for some time and are commonly disregarded leading to an increase in workplace accidents. The RVFRS2 is the latest technology in workplace forklift safety. Featuring 2 high performance 3 watt Osram LED’s that produce a highly intense 180lm red line beam. The safety line beam is designed to shine a safety line on the sides and behind the forklift alerting pedestrians and other forklifts of an exclusion zone. RVFRL2’s simple pendant mount design allows for easy fitment and with die-cast aluminium housings and polycarbonate lenses, the RVFRL2 is virtually unbreakable. Roadvision’s RVFRL2 safety line forklift lamps are essential to adhere to the highest levels of workplace health and safety.
MULTI-VOLT
10-30 VDC
POLYCARB LENS
ALUMINIUM HOUSING
WATERPROOF
5 YEAR WARRANTY
RANGE FEATURES
- Multi-volt 10-80V input & low current draw
- 180lm red line beam
- 2 high performance 3 watt LED’s
- Provides additional workplace health & safety
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Polycarbonate lens & die-cast aluminium housing
- IP67 water & dust proof
- Reverse polarity & over/under voltage protected
- Simple pendant mount & 2 wire connection
- Pre-wired with 500mm leads

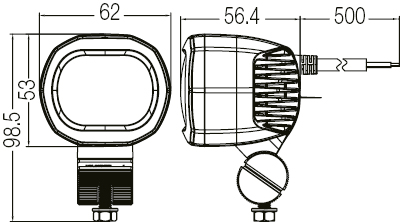

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | RVFRL2 |
|---|---|---|
| 1 | Description | Red Line LED Forklift Safety Lamp 10-80V 62 x 53mm 5W Red Line Beam |
| 2 | Number of LED’s | 2 x 3 Watt Osram LED’s |
| 3 | Light Output | 180lm Red Line Beam |
| 4 | Watts | 5 Watts |
| 5 | Input Voltage | 10-80 Volt DC |
| 6 | Current Draw | 0.5 Amps @ 13.8 Volt DC |
| 7 | IP Rating | IP67 Water & Dust Proof |
| 8 | Housing Construction | Die Cast Aluminium |
| 9 | Lens Construction | Polycarbonate |
| 10 | Dimensions | 62 x 53 x 56.4mm |
| 11 | Wiring | 0.5m Sheathed Cable |
