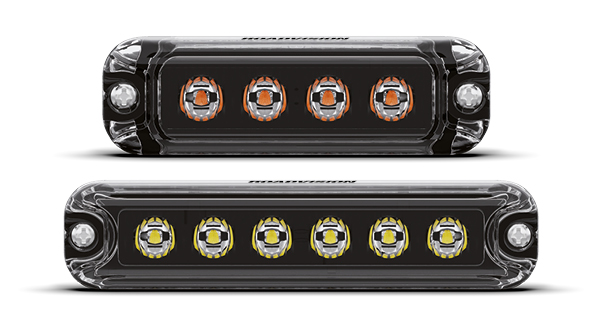

ROADVISION’s RSM07 Series ultra low-profile LED strobe modules are simply perfect for discrete applications! Roadvision’s super bright LED strobe modules deliver the durability of maintenance free LED technology and greater visibility. Featuring 18 selectable flash patterns, multi-unit synchronisation (simultaneous or alternating flash) and virtually unbreakable polycarbonate lens. Roadvision’s RSM07 Series modules simply take safety lighting to another level, ideal for all your automotive, industrial and agricultural requirements.
MULTI-VOLT
10-30 VDC
POLYCARB LENS
ALUMINIUM HOUSING
WATER & DUST PROOF
10 FLASH PATTERNS
CLASS 1 APPROVED
5 YEAR WARRANTY
RANGE FEATURES
- Multi-volt 10-30V input & low current draw
- Built-in 18 selectable flash patterns
- Last pattern memory recall
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Multi-unit synchronisation
- Simultaneous or alternating flashing
- Weatherproof & vibration resistant
- Ultra low-profile for discrete applications
FLASH PATTERNS
- OFF
- Single
- Double (Fast)
- Quadruple (Fast)
- Double (Slow)
- Single (Split)
- Double (Split)
- Quadruple (Slow Split)
- Quadruple (Fast Split)
- Double (Split) Interval
- Sextuple (Split)
- Quintuple 4 Cycles Then 100ms 10 Cycles (Split)
- 100ms 14 Cycles Then 200ms 6 Cycles (Split)
- Sextuple
- Quadruple (Slow)
- Quintuple (Slow)
- LHS Double, RHS Half Bright
- RHS Double, LHS Half Bright
DIMENSIONS

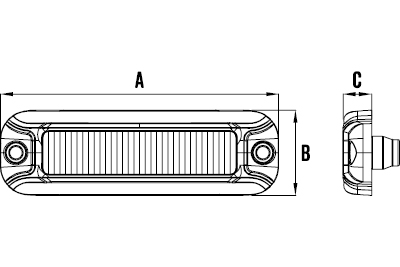

RSM0704A & RSM0704W

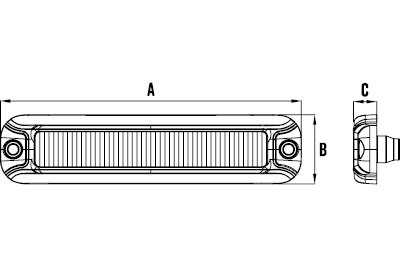

RSM0706A & RSM0706W
RANGE SPECIFICATIONS
| wdt_ID | Part Number | RSM0704A | RSM0704W | RSM0706A | RSM0706W |
|---|---|---|---|---|---|
| 1 | Description | LED Strobe Module 10-30V Rectangle Surface Mount 12W Amber | LED Strobe Module 10-30V Rectangle Surface Mount 12W White | LED Strobe Module 10-30V Rectangle Surface Mount 18W Amber | LED Strobe Module 10-30V Rectangle Surface Mount 18W White |
| 2 | Synchronisation | Simultaneous & Alternate | Simultaneous & Alternate | Simultaneous & Alternate | Simultaneous & Alternate |
| 3 | Flash Patterns | 18 | 18 | 10 | 10 |
| 4 | Input Voltage | 10-30 VDC | 10-30 VDC | 10-30 VDC | 10-30 VDC |
| 5 | Watts | 12W | 12W | 18W | 18W |
| 6 | Number of LEDs | 4 x 3W | 4 x 3W | 6 x 3W | 6 x 3W |
| 7 | Current Draw @ 13.8V | 1 Amp | 1 Amp | 1.5 Amp | 1.5 Amp |
| 8 | Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |
| 9 | Housing Construction | Aluminium | Aluminium | Aluminium | Aluminium |
| 10 | Mounting Centres | 87mm | 87mm | 119mm | 119mm |
| 11 | Dimensions AxBxC | 98 x 30 x 10mm | 98 x 30 x 10mm | 130 x 30 x 10mm | 130 x 30 x 10mm |
| 12 | Wiring | Red - Positive Black - Negative Yellow - Flash Select & Sync White - Alternate Flash |
Red - Positive Black - Negative Yellow - Flash Select & Sync White - Alternate Flash |
Red - Positive Black - Negative Yellow - Flash Select & Sync White - Alternate Flash |
Red - Positive Black - Negative Yellow - Flash Select & Sync White - Alternate Flash |
MOUNTING BRACKETS
BKT-RSM01 – Suits RSM0704
BKT-RSM02 – Suits RSM0706
