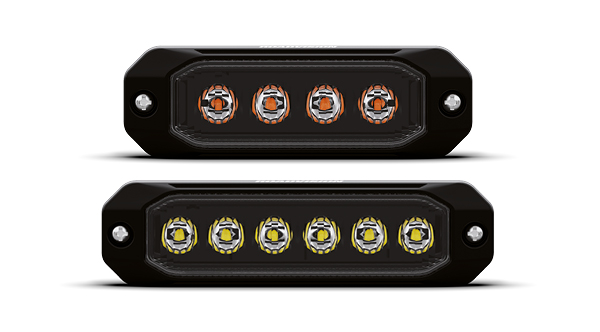

ROADVISION’s RSM06 Series super low-profile LED strobe modules are simply perfect for discrete applications! Roadvision’s super bright LED strobe modules deliver the durability of maintenance free LED technology and greater visibility. Featuring 10 selectable flash patterns, multi-unit synchronisation (simultaneous or alternating flash), aluminium housing and virtually unbreakable polycarbonate lens. Roadvision’s RSM06 Series modules simply take safety lighting to another level, ideal for all your automotive, industrial and agricultural requirements.
MULTI-VOLT
10-30 VDC
POLYCARB LENS
ALUMINIUM HOUSING
WATER & DUST PROOF
10 FLASH PATTERNS
CLASS 1 APPROVED
5 YEAR WARRANTY
RANGE FEATURES
- Multi-volt 10-30V input & low current draw
- Built-in 10 selectable flash patterns
- Last pattern memory recall
- 100,000 hour LED life span with solid state technology
- Maintenance free
- Multi-unit synchronisation
- Simultaneous or alternating flashing
- Weatherproof & vibration resistant
- Super low-profile for discrete applications
FLASH PATTERNS
- Single
- Quadruple (Split)
- Quintiple
- Triple (Split)
- Quadruple
- Double (Split)
- Triple
- Single (Split)
- Double
- Sextuple
DIMENSIONS

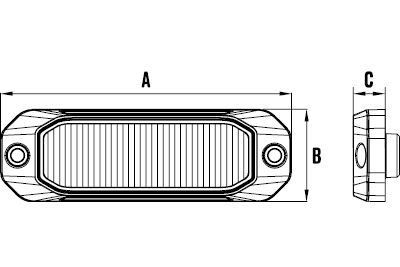

RSM0604A & RSM0604W

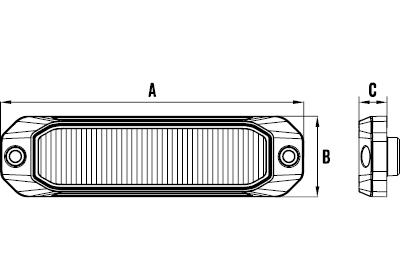

RSM0606A & RSM0606W
RANGE SPECIFICATIONS
| wdt_ID | Part Number | RSM0604A | RSM0604W | RSM0606A | RSM0606W |
|---|---|---|---|---|---|
| 1 | Description | LED Strobe Module 10-30V Rectangle Surface Mount 12W Amber | LED Strobe Module 10-30V Rectangle Surface Mount 12W White | LED Strobe Module 10-30V Rectangle Surface Mount 18W White | LED Strobe Module 10-30V Rectangle Surface Mount 18W Amber |
| 2 | Synchronisation | Simultaneous & Alternate | Simultaneous & Alternate | Simultaneous & Alternate | Surface Mount 18W Amber |
| 3 | Flash Patterns | 10 | 10 | 10 | 10 |
| 4 | Input Voltage | 10-30 VDC | 10-30 VDC | 10-30 VDC | 10-30 VDC |
| 5 | Watts | 12W | 12W | 18W | 18W |
| 6 | Number of LEDs | 4 x 3W | 4 x 3W | 6 x 3W | 6 x 3W |
| 7 | Current Draw @ 13.8V | 1 Amp | 1 Amp | 1.5 Amp | 1.5 Amp |
| 8 | Lens Construction | Polycarbonate | Polycarbonate | Polycarbonate | Polycarbonate |
| 9 | Housing Construction | Aluminium | Aluminium | Aluminium | Aluminium |
| 10 | Mounting Centres | 89mm | 89mm | 108mm | 108mm |
| 11 | Dimensions AxBxC | 101 x 32 x 11mm | 101 x 32 x 11mm | 120 x 32 x 11mm | 120 x 32 x 11mm |
| 12 | Wiring | Red - Positive Black - Negative Yellow - Flash Select & Sync White - Alternate Flash |
Red - Positive Black - Negative Yellow - Flash Select & Sync White - Alternate Flash |
Red - Positive Black - Negative Yellow - Flash Select & Sync White - Alternate Flash |
Red - Positive Black - Negative Yellow - Flash Select & Sync White - Alternate Flash |
MOUNTING BRACKETS
BKT-RSM01 – Suits RSM0604
BKT-RSM02 – Suits RSM0606
