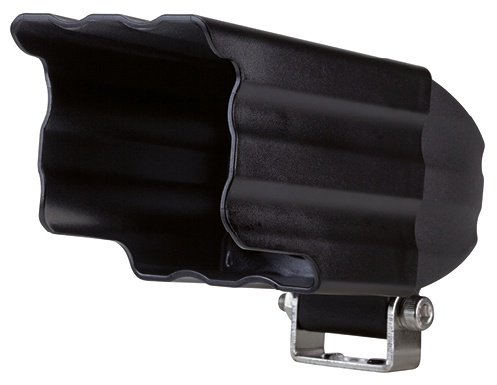

ROADVISION’s RWL215 Series compact work lamps offer uncompromising performance and energy efficiency in a compact, easy to install package. The RWL215 Series include 5W Cree LED’s, available in either flood beam, or spot beam with a specially designed glare shield ideal for mounting on truck mirrors for additional visibility when reversing. Roadvision’s compact work lamps are perfect for applications where space is limited. Water and dust proof to IP67, the RWL215 Series feature a super durable light weight die-cast housing and polycarbonate lens, allowing for worry free operation in even the toughest conditions
MULTI-VOLT
10-30 VDC
POLYCARB LENS
COLOUR TEMP
WATER & DUST PROOF
OVER/UNDER VOLTAGE PROTECTION
REVERSE POLARITY PROTECTION
5W CREE LEDS
RADIO INTERFERENCE APPROVED
5 YEAR WARRANTY
RANGE FEATURES
- RWL215 Series LED work lamps produce 1200lm of instant light output
- Available in flood or spot with glare shield
- 5W Cree LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input
- Super low current draw
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | RWL215F | RWL215SG |
|---|---|---|---|
| 1 | Description | 215 Series LED Work Lamp 15W Flood | 215 Series LED Work Lamp 15W Spot with Glare Shield |
| 2 | Beam Type | Flood Beam | Spot Beam |
| 3 | Lumens Light Output (Effective) | 1200lm | 1200lm |
| 4 | Beam Distance | 70m | 238m |
| 5 | Total Watts | 15W | 15W |
| 6 | Light Source | 3 x 5W CREE LED's | 3 x 5W CREE LED's |
| 7 | Input Voltage | 10-30V DC | 10-30V DC |
| 8 | Current Draw Amps | 0.8A @ 13.8V DC | 0.8A @ 13.8V DC |
| 9 | Dimensions | 66x65x120mm | 66x156x120mm |
| 10 | Wiring | 300mm Lead | 300mm Lead |
| 11 | Lux @ 10m | 12 Lux | 142 Lux |
| 12 | Meters @ 1 Lux | 35m | 119m |
| 13 | Meters @ 0.5 Lux | 70m | 238m |
BEAM PATTERN – FLOOD
BEAM PATTERN – SPOT
