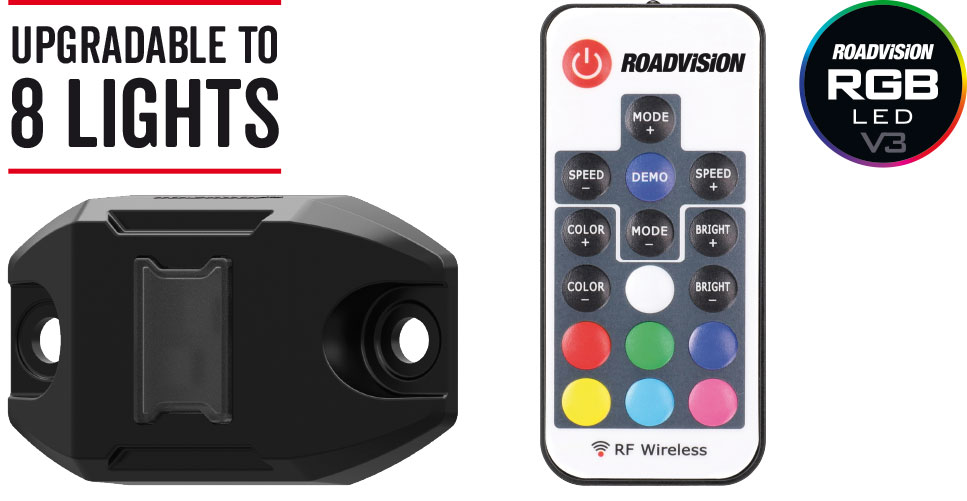

RGB LED ROCK LIGHT KIT V3
WITH RF REMOTE CONTROL

UPGRADABLE TO 8 LIGHTS

Roadvision’s RGB LED rock light kits are a simple yet durable solution for providing underbody lighting. Featuring 4 x 256-Grade PWM lights, users can select from 19 dynamic modes, 20 static colours or demo mode using the slim line card type RF remote. The unit also has 10 adjustable speed, 5 brightness controls and an auto save function. With a 30m transmitter range, multi-voltage input and simple 2 wire installation with plug & play connectors, Roadvision’s LED rock light kits add instant bling to your rig.

MULTI-VOLT
10-30 VDC

POLYCARB LENS

ALUMINIUM HOUSING

IP PROTECTION

LEDLINK CONNECTOR

5 YEAR WARRANTY

KIT CONTENTS

RANGE FEATURES

  • RGB LED rock light kit with RF remote control

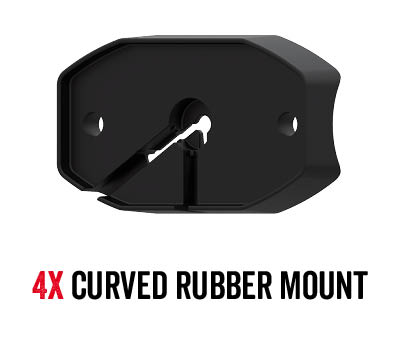

  • 4 x 1.8W 256-Grade PWM LED rock lights with 3 rubber mounting options
  • Upgradable up to 8 rock lights (RRGB1RL3)
  • Card type RF remote control with 30m range
  • 19 dynamic modes, 20 static colours, demo mode, speed & brightness adjustable
  • Multi-volt 10-30V DC input & super low current draw
  • 50,000 hour LED lifespan with solid state technology
  • Light weight tough die-cast aluminium housing & polycarbonate lens
  • Water & dust proof IP67, IP69K rated
  • Simple 2 wire installation with plug & play connectors

INSTALLATION INSTRUCTIONS

Download the Installation Instructions (425 KB / .pdf)

SPEC SHEET

Download the Spec Sheet (4 MB / .pdf)

DIMENSIONS

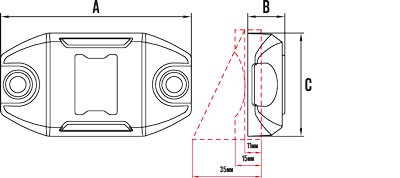

LINE DIAGRAM

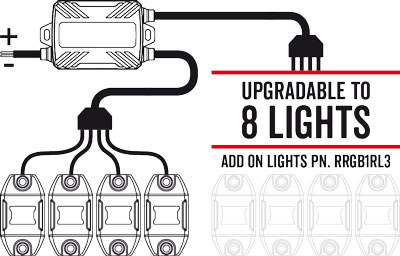

WIRING DIAGRAM

RANGE SPECIFICATIONS

wdt_ID Part Number RRGB4RLK3
1 Description RGB LED Rock Light Kit V3 with RF Remote Control
2 Colour Output RGB Colour
3 Input Voltage 10-30 VDC
7 Power Watts 7.2W (1.8W x 4), 14.4W (1.8W x 8)
9 Number of LEDS 3 x RGB LED’s
10 Current Draw @ 13.8V 0.7 Amps (4 Lights)
11 Dimensions AxBxC 72 x 14 x 39mm
12 Wiring Plug & Play LEDLink® Connectors

ACCESSORIES

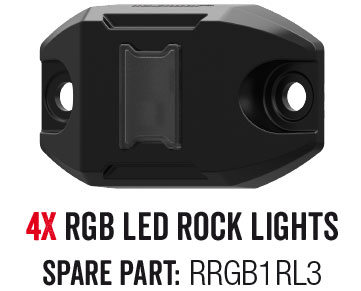

RRGB1RL3

  • Add on light for the RGB Rock Light Kit V3.

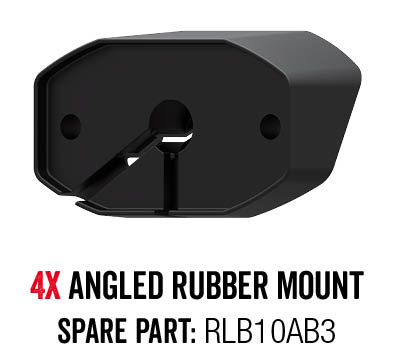

RLB10AB3

  • Angled Rubber Mount for the RGB Rock Light Kit V3.

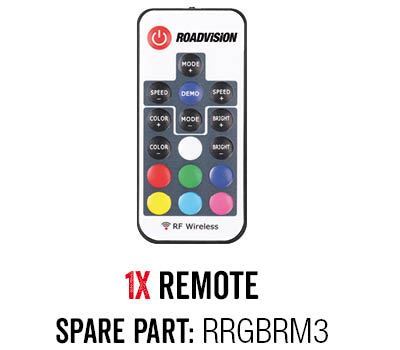

RRGBRM3

  • Remote for the RGB Rock Light Kit V3.

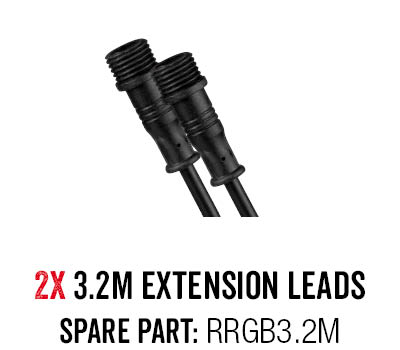

RRGB3.2M

  • Extension Leads for the RGB Rock Light Kit V3.
