INNOVATIVE DIMMABLE
Discover ROADVISION’s innovative dimmable amber/white LED utility lamp series, engineered to deliver powerful, reliable lighting wherever you need it. Designed for canopies, cabins, caravans, marine environments, and outdoor camping areas, this versatile range is available in three size options to suit any setup. The 4500K white mode provides crisp, bright illumination for maximum visibility, while the amber mode enhances outdoor ambience and helps reduce insect attraction—ideal for camping and evening use. Each unit features last‑function memory, smooth dimming control, an integrated switch, and a tough polycarbonate lens paired with a durable aluminium housing. Fully sealed to IP68 and IP69K standards, these lamps are built for both indoor and outdoor use, delivering long‑lasting performance even in the harshest environments.
12 VOLT DC
POLYCARB LENS
CAST ALLOY HOUSING
90° BEAM ANGLE
IP PROTECTION
WHITE AMBER LED
5 YEAR WARRANTY
OPERATING INTRUCTIONS
- On/Off – Press Switch Momentarily to Cycle Through White/Amber/Off
- Dimming – Press & Hold Switch to Adjust Brightness
RANGE FEATURES
- LED utility lighting range suitable for interior or exterior applications
- Amber-white illumination in one light
- 3 size options available
- 12V DC Input
- High performance light output up to 757lm
- 100,000 hour rated LED lifespan with solid state technology
- Last function memory
- Polycarbonate lens and durable aluminium housing
- Water and dust proof IP68, IP69K rated
- Integrated On/Off switch with dimmable function
- Simple Surface mount
DIMENSIONS

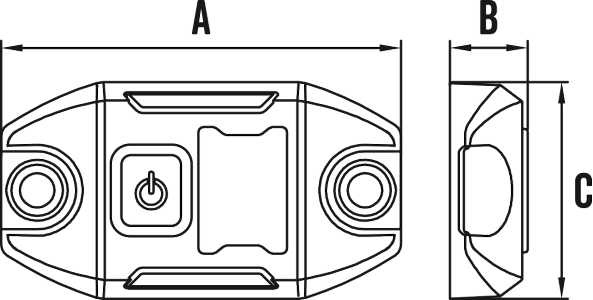

LINE DIAGRAM – IL72AWD
RANGE SPECIFICATIONS
| wdt_ID | Part Number | IL72AWD |
|---|---|---|
| 1 | Description | LED Interior Lamp 12V White/Amber Flood Beam Dimmable With Switch |
| 2 | Lumens White | 530lm |
| 3 | Lumens Amber | 250lm |
| 7 | Input voltage | 12VDC |
| 9 | Number of LEDS | Amber 3, White 3 |
| 10 | Current Draw @ 13.8V | 0.3A @ 13.8V |
| 11 | Lens Construction | Polycarbonate |
| 12 | Housing COnstruction | Cast Aluminium |
| 13 | Colour Temp White | 4500K |
| 14 | Colour Temp Amber | 1600K |
| 15 | Dimensions AxBxC | 72 x 14 x 39mm |
| 16 | Wiring | 380mm Lead |
