RGB LED ROCK LIGHT KIT V2

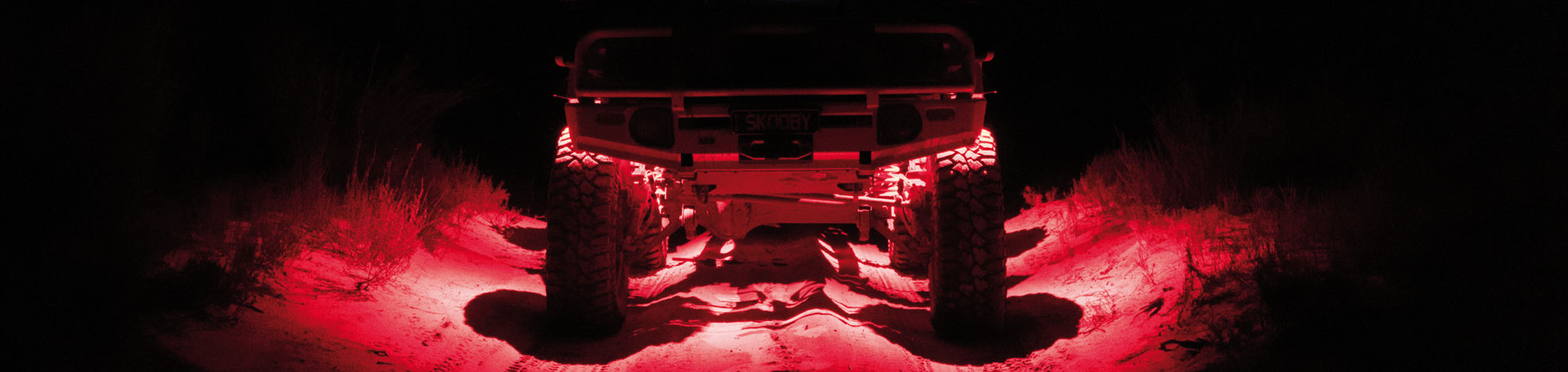

Roadvision’s RGB LED rock light kits are a simple yet durable solution for providing underbody lighting. Featuring 4 x 256-Grade PWM lights, users can select from 19 dynamic modes, 20 static colours or demo mode using the slim line card type RF remote. The unit also has 10 adjustable speed, 5 brightness controls and an auto save function. With a 30m transmitter range, multi-voltage input and simple 2 wire installation with plug & play connectors, Roadvision’s LED rock light kits add instant bling to your rig.
MULTI-VOLT
10-30 VDC
ALUMINIUM HOUSING
POLYCARB LENS
WATER & DUST PROOF
LEDLINK CONNECTOR
7 YEAR WARRANTY
KIT CONTENTS
RANGE FEATURES
- RGB LED rock light kit with RF remote control
- 4 x 1.8W 256-Grade PWM LED rock lights with 3 rubber mounting options
- Upgradable up to 8 rock lights (RRGB1RL)
- Card type RF remote control with 30m range
- 19 dynamic modes, 20 static colours, demo mode, speed & brightness adjustable
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation with plug & play connectors
INSTALLATION INSTRUCTIONS
Download the Installation Instructions (425 KB / .pdf)
DIMENSIONS
LINE DIAGRAM
WIRING DIAGRAM
RANGE SPECIFICATIONS
| wdt_ID | Part Number | RRGB4RLK2 |
|---|---|---|
| 1 | Description | LED Rock Light Kit V2 RGB With RF Remote Control (Upgradable to 8 Lights) |
| 2 | Colour Output | RGB Colour |
| 3 | Input Voltage | 10-30 VDC |
| 7 | Power Watts | 7.2W (1.8W x 4), 14.4W (1.8W x 8) |
| 8 | Lux @10m | 380 Lux |
| 9 | Number of LEDS | 3 x RGB LED’s |
| 10 | Current Draw @ 13.8V | 0.6 Amps (4 Lights), 1.2A (8 Lights) |
| 11 | Dimensions AxBxC | 77 x 11 x 39mm |
| 12 | Wiring | LEDLink Connectors |
ACCESSORIES
RRGB1RL
- Add on light for the RGB Rock Light Kit V2.
