COMBINATION LAMPS

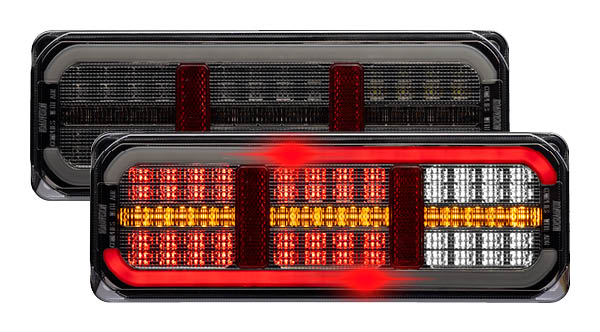

Upgrade your vehicle’s rear lighting with the ROADVISION BRD281 Series—where cutting-edge design meets uncompromising performance. Featuring Stop/Tail/Indicator or Stop/Tail/Indicator & Reverse functions, the BRD281 Series is equipped with a sleek sequential indicator and dynamic start up Grey Glowtech tail light for a distinctive look and enhanced road presence. The integrated retro reflector boosts visibility, while multi-volt 10–30V DC input and low current draw ensure energy-efficient operation. Designed for durability with a lightweight, tough polycarbonate housing and lens, these lamps are ADR approved for all functions and built to last with a 100,000-hour rated solid-state LED lifespan. A mild tinted lens and gun metal grey chrome finish complete the look, making the BRD281 Series the ultimate blend of style, safety, and reliability.
MULTI VOLT
10-30V DC
POLY CARBONATE LENS
POLYCARB HOUSING
ADR APPROVED
WATERPROOF
SEQUENTIAL INDICATOR
GLOW TAIL LIGHT
5 YEAR WARRANTY
FEATURES
- Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
- Sequential Indicator
- Dynamic start up Grey Glowtech tail light
- Integrated Retro Reflector
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens
- Mild tinted lens and gun metal grey chrome finish

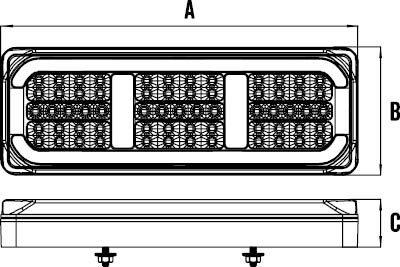

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | BRD281ARR | BRD281ARW |
|---|---|---|---|
| 1 | Description | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 200x100x37mm Dynamic Glow Tail | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref 200x100x37mm Dynamic Glow Tail |
| 2 | Input Voltage | 10-30 VDC | 10-30 VDC |
| 3 | Number of LEDS | Indicator - 15 LEDs Stop - 48 LEDs Tail - 36 LEDs |
Indicator - 15 LEDs Stop - 32 LEDs Tail - 36 LEDs Reverse - 16 LEDs |
| 4 | Current Draw @ 13.8V | Ind - 0.29A Stop - 0.33A Tail - 0.14A @ 13.8V |
Ind - 0.29A Stop - 0.2A Tail - 0.14A Rev - 0.26A @ 13.8V |
| 5 | Lens Construction | Polycarbonate | Polycarbonate |
| 6 | Housing Construction | Polycarbonate | Polycarbonate |
| 7 | Mounting Hole Centres | 120mm | 120mm |
| 8 | Overall Dimensions | 280 x 100 x 37mm | 280 x 100 x 37mm |
| 9 | Cable Length | 300mm Tinned Copper | 300mm Tinned Copper |
| 10 | CTA Approval | CTA-061834 | CTA-061825 |
| 11 | Wiring | Earth - White Stop - Red Tail - Brown Indicator - Yellow |
Earth - White Stop - Red Tail - Brown Indicator - Yellow Reverse - Black |
