COMBINATION LAMPS

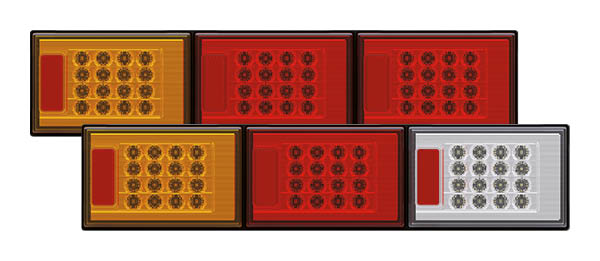

ROADVISION’s BR602 Series LED jumbo combination lamps are the ultimate heavy-duty lighting solution for trucks and trailers, now with a refreshed design and enhanced styling. Featuring Stop, Tail, Indicator, Reflector, and optional Reverse functions all in one robust unit, the BR602 Series delivers maximum functionality without compromise. Engineered with maintenance-free LED technology, these lamps offer superior visibility and safety, while consuming only a fraction of the power of traditional incandescent lights. Built tough for demanding environments, the BR602 features unbreakable polycarbonate lenses and a rugged, high-impact ABS housing that is fully sealed against dust and water ingress. Rated to a 100,000-hour LED lifespan, the BR602 Series is a true fit-and-forget solution, ideal for those who demand reliability, performance, and durability in every kilometre.
MULTI VOLT
10-30V DC
POLY CARBONATE LENS
POLYCARB HOUSING
ADR APPROVED
WATERPROOF
5 YEAR WARRANTY
FEATURES
- Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
- Integrated Retro Reflectors
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens
- Retro-fits in place of existing jumbo style lamps

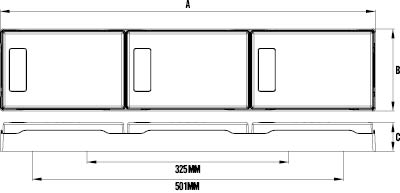

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | BR602ARR | BR602ARW |
|---|---|---|---|
| 1 | Description | LED Rear Combination Lamp 10-30V Stop/Tail x 2/Ind Jumbo Triple Surface Mount 604x132x46mm | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev Jumbo Triple Surface Mount 604x132x46mm |
| 2 | Input Voltage | 10-30 VDC | 10-30 VDC |
| 3 | Number of LEDS | Indicator - 16 LEDs Stop/Tail - 32 LEDs |
Indicator - 16 LEDs Stop/Tail - 16 LEDs Reverse - 16 LEDs |
| 4 | Current Draw @ 13.8V | Ind - 0.11A Stop - 0.23A Tail - 0.04A @ 13.8V |
Ind - 0.11A Stop - 0.11A Tail - 0.02A Rev - 0.11A @ 13.8V |
| 5 | Lens Construction | Polycarbonate | Polycarbonate |
| 6 | Housing Construction | High Impact ABS | High Impact ABS |
| 7 | Mounting Hole Centres | 501mm & 325mm | 501mm & 325mm |
| 8 | Overall Dimensions | 604 x 132 x 46mm | 604 x 132 x 46mm |
| 9 | Cable Length | 300mm Tinned Copper | 300mm Tinned Copper |
| 10 | CTA Approval | CTA-061847 | CTA-061849 |
| 11 | Wiring | Earth - White Stop - Red Tail - Brown Indicator - Yellow |
Earth - White Stop - Red Tail - Brown Indicator - Yellow Reverse - Black |
| 12 | 10-30 VDC | 10-30 VDC |
