COMBINATION LAMPS

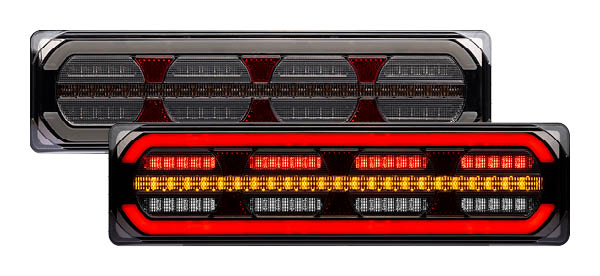

ROADVISION’s BR392 Series provides a premium lighting solution, combining Stop, Tail, Indicator, and Reverse functions with the added sophistication of a sequential indicator and Grey Glowtech tail light. Engineered for safety and style, these advanced LED lamps deliver exceptional brightness and an extended lifespan of up to 100,000 hours with reliable solid-state technology. The BR392 Series is ADR-approved for all functions and built tough with a lightweight polycarbonate housing and lens. Its mild tinted lens and gun metal grey chrome finish create a sleek, modern aesthetic, while the integrated retro reflector enhances visibility. Designed for versatility and effortless installation, the BR392 Series is the ideal choice wherever combination lamps are needed.
MULTI VOLT
10-30V DC
POLY CARBONATE LENS
POLYCARB HOUSING
ADR APPROVED
WATERPROOF
SEQUENTIAL INDICATOR
GLOW TAIL LIGHT
5 YEAR WARRANTY
FEATURES
- Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
- Sequential Indicator
- Grey Glowtech tail light
- Integrated Retro Reflector
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens
- Mild tinted lens and gun metal grey chrome finish

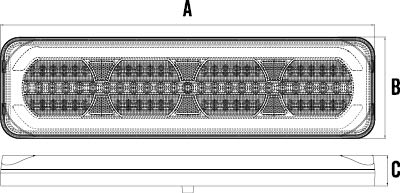

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | BR392ARR | BR392ARW |
|---|---|---|---|
| 1 | Description | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 390x105x39mm | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref Glowtech Tail 390x105x39mm |
| 2 | Input Voltage | 10-30 VDC | 10-30 VDC |
| 3 | Number of LEDS | Indicator - 24 LEDs Stop - 40 LEDs Tail - 54 LEDs |
Indicator - 24 LEDs Stop - 20 LEDs, |
| 4 | Current Draw @ 13.8V | Tail - 54 LEDs, Reverse - 20 LEDs | Tail - 54 LEDs, Reverse - 20 LEDs |
| 5 | Lens Construction | Ind - 0.37A Stop - 0.27A Tail - 0.18A @ 13.8V |
Ind - 0.35A Stop - 0.21A Tail - 0.18A Rev - 0.2A @ 13.8V |
| 6 | Housing Construction | Polycarbonate | Polycarbonate |
| 7 | Mounting Hole Centres | Polycarbonate | Polycarbonate |
| 8 | Overall Dimensions | 185-225mm | 185-225mm |
| 9 | Cable Length | 390 x 105 x 39mm | 390 x 105 x 39mm |
| 10 | CTA Approval | 300mm Tinned Copper | 300mm Tinned Copper |
| 11 | Wiring | CTA-061826 | CTA-061827 |
| 12 | Earth - White Stop - Red Tail - Brown Indicator Left - Yellow Indicator Right - Green |
Earth - White Stop - Red Tail - Brown Indicator Left - Yellow Indicator Right - Green Reverse - Black |
