COMBINATION LAMPS
Elevate your vehicle’s lighting with the ROADVISION BR390 Series, a premium solution blending Stop, Tail, Indicator, and Reverse functions with the cutting-edge sophistication of a sequential indicator and Grey Glowtech tail light. Built for safety, durability, and style, these advanced LED lamps provide outstanding brightness, an ultra-long lifespan of up to 100,000 hours, and the reliability of solid-state technology. The BR390 Series is fully ADR-approved for all functions and constructed with a robust yet lightweight polycarbonate housing and lens. Featuring a mild tinted lens and a gun metal grey chrome finish, these lamps exude a modern, sleek design. An integrated retro reflector enhances visibility, ensuring safety is never compromised. Versatile and easy to install, the BR390 Series delivers the perfect combination of functionality and aesthetics for any application requiring top-quality combination lamps.
MULTI VOLT
10-30V DC
POLY CARBONATE LENS
POLYCARB HOUSING
ADR APPROVED
WATERPROOF
SEQUENTIAL INDICATOR
GLOW TAIL LIGHT
5 YEAR WARRANTY
FEATURES
- Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
- Sequential Indicator
- Grey Glowtech tail light
- Integrated Retro Reflector
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens
- Mild tinted lens and gun metal grey chrome finish

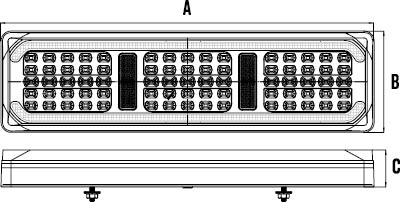

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | BR390ARR | BR390ARW |
|---|---|---|---|
| 1 | Description | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 390x105x39mm | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref Glowtech Tail 390x105x39mm |
| 2 | Input Voltage | 10-30 VDC | 10-30 VDC |
| 3 | Number of LEDS | Indicator - 15 LEDs Stop - 60 LEDs Tail - 54 LEDs |
Indicator - 15 LEDs Stop - 40 LEDs Tail - 54 LEDs Reverse - 20 LEDs |
| 4 | Current Draw @ 13.8V | Ind - 0.57A Stop - 0.29A Tail - 0.18A @ 13.8V |
Ind - 0.57A Stop - 0.27A Tail - 0.18A Rev - 0.29A @ 13.8V |
| 5 | Lens Construction | Polycarbonate | Polycarbonate |
| 6 | Housing Construction | Polycarbonate | Polycarbonate |
| 7 | Mounting Hole Centres | 185-225mm | 185-225mm |
| 8 | Overall Dimensions | 390 x 105 x 39mm | 390 x 105 x 39mm |
| 9 | Cable Length | 300mm Tinned Copper | 300mm Tinned Copper |
| 10 | CTA Approval | CTA-061760 | CTA-061759 |
| 11 | Wiring | Earth - White Stop - Red Tail - Brown Indicator - Yellow |
Earth - White Stop - Red Tail - Brown Indicator - Yellow Reverse - Black |
