COMBINATION LAMPS

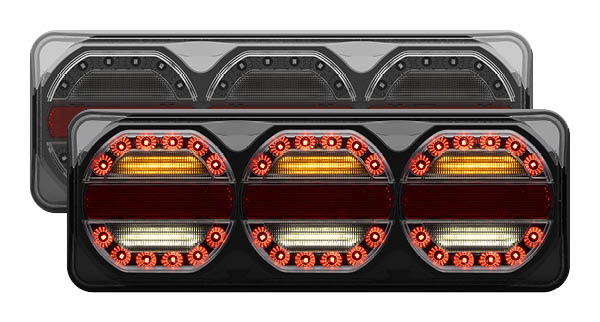

ROADVISION’s BR370 Series delivers the ultimate all-in-one lighting solution, combining Stop, Tail, Indicator, and Reverse functions in a sleek, durable design. These premium LED lamps provide exceptional brightness, enhanced safety, and an extended lifespan of up to 100,000 hours thanks to advanced solid-state technology. The BR370 Series is ADR-approved, ensuring compliance with industry standards, and features a lightweight yet tough polycarbonate housing and lens for outstanding durability. Its tinted lens and gunmetal grey chrome finish add a modern aesthetic, while the integrated retro reflector enhances visibility. With a simple surface-mount design and maintenance-free performance, the BR370 Series is the perfect choice wherever reliable combination lamps are needed.
MULTI VOLT
10-30V DC
POLY CARBONATE LENS
POLYCARB HOUSING
ADR APPROVED
WATERPROOF
5 YEAR WARRANTY
FEATURES
- Stop/Tail Indicator, and Stop/Tail Indicator & Reverse functions
- Integrated Retro Reflector
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens
- Mild tinted lens and gun metal grey chrome finish

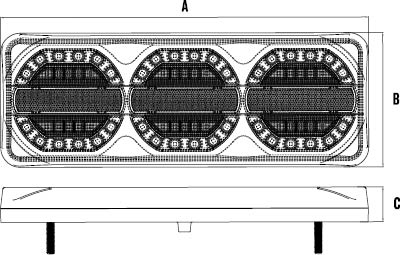

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | BR370ARR | BR370ARW |
|---|---|---|---|
| 1 | Description | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 370x135x35mm | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref 370x135x35mm |
| 2 | Input Voltage | 10-30 VDC | 10-30 VDC |
| 3 | Number of LEDS | Indicator - 30 LEDs Stop/Tail - 36 LEDs |
Indicator - 15 LEDs Stop/Tail - 36 LEDs Reverse - 15 LEDs |
| 4 | Current Draw @ 13.8V | Ind - 0.5A Stop - 0.36A Tail - 0.065A @ 13.8V |
Ind - 0.13A Stop - 0.19A Tail - 0.03A Rev - 0.18A @ 13.8V |
| 5 | Lens Construction | Polycarbonate | Polycarbonate |
| 6 | Housing Construction | Polycarbonate | Polycarbonate |
| 7 | Mounting Hole Centres | 269mm | 269mm |
| 8 | Overall Dimensions | 370 x 135 x 35mm | 370 x 135 x 35mm |
| 9 | Cable Length | 300mm Tinned Copper | 300mm Tinned Copper |
| 10 | CTA Approval | CTA-061758 | CTA-061757 |
| 11 | Wiring | Earth - White Stop - Red Tail - Brown Indicator - Yellow |
Earth - White Stop - Red Tail - Brown Indicator - Yellow |
