COMBINATION LAMPS

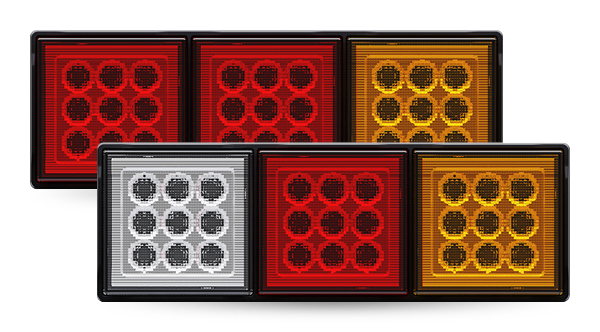

ROADVISION’s BR302 Series LED combination lamps are the ideal all-in-one lighting solution for 4WDs, small to medium trucks, and trailers. Designed for versatility and performance, the BR302 Series includes Stop, Tail, Indicator, and optional Reverse functions in a compact, durable package. Featuring maintenance-free LED technology, these lamps offer brighter output and greater efficiency than traditional incandescent lights, while drawing significantly less power. Built with unbreakable polycarbonate lenses and a rugged high-impact ABS housing, the BR302 Series is fully sealed against dust and water and rated to a 100,000-hour lifespan. Tough, compact, and reliable—with the BR302 Series, it’s fit and forget.
MULTI VOLT
10-30V DC
POLY CARBONATE LENS
HIGH IMPACT HOUSING
ADR APPROVED
WATERPROOF
5 YEAR WARRANTY
FEATURES
- Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens

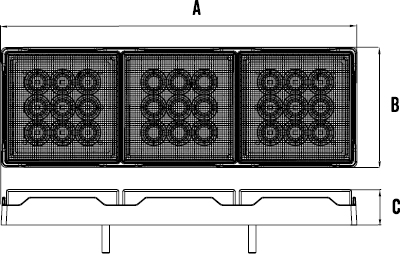

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | BR302ARR | BR302ARW |
|---|---|---|---|
| 1 | Description | LED Rear Combination Lamp 10-30V Stop/Tail x 2/Indicator Triple Surface Mount 282x95x28mm | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Reverse Triple Surface Mount 282x95x28mm |
| 2 | Input Voltage | 10-30 VDC | 10-30 VDC |
| 3 | Number of LEDS | Indicator - 9 LEDs Stop/Tail - 18 LEDs, |
Indicator - 9 LEDs Stop/Tail - 9 LEDs Reverse - 9 LEDs |
| 4 | Current Draw @ 13.8V | Ind - 0.1A Stop - 0.15A Tail - 0.04A @ 13.8V |
Ind - 0.1A, Stop - 0.08A Tail - 0.02A, Rev - 0.1A @ 13.8V |
| 5 | Lens Construction | Polycarbonate | Polycarbonate |
| 6 | Housing Construction | High Impact ABS | High Impact ABS |
| 7 | Mounting Hole Centres | 116mm | 116mm |
| 8 | Overall Dimensions | 282 x 95 x 28mm | 282 x 95 x 28mm |
| 9 | Cable Length | 300mm Tinned Copper | 300mm Tinned Copper |
| 10 | CTA Approval | CTA-061848 | CTA-061851 |
| 11 | Wiring | Earth - White Stop - Red Tail - Brown Indicator - Yellow |
Earth - White Stop - Red Tail - Brown Indicator - Yellow Reverse - Black |
