COMBINATION LAMPS

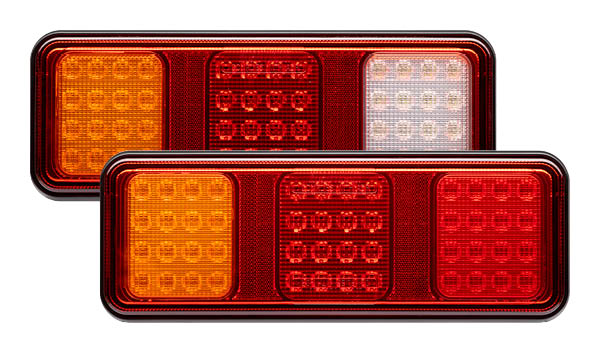

ROADVISION’s BR285 Series triple combination trailer lamps offer a reliable all-in-one solution with a timeless, classic look. Combining Stop, Tail, Indicator & Reverse functions, the BR285 Series delivers the performance of high-efficiency LED technology with the durability to withstand the harshest conditions. These lamps produce significantly more light than traditional incandescent options while using a fraction of the power, enhancing both safety and energy efficiency. Built tough with virtually unbreakable polycarbonate lenses and a rugged high-impact ABS housing, the BR285 Series is fully sealed, weather-resistant, and rated to an impressive 100,000-hour lifespan. With their traditional styling and proven LED performance, the BR285 Series is the perfect fit-and-forget solution for those who value reliability.
MULTI VOLT
10-30V DC
POLY CARBONATE LENS
POLYCARB HOUSING
ADR APPROVED
WATERPROOF
5 YEAR WARRANTY
FEATURES
- Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
- Integrated Retro Reflector
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens

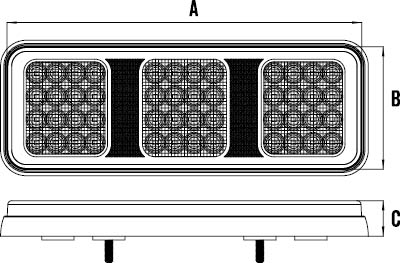

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | BR285ARR | BR285ARW |
|---|---|---|---|
| 1 | Description | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 285x105x27.5mm | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref 285x105x27.5mm |
| 2 | Input Voltage | 10-30 VDC | 10-30 VDC |
| 3 | Number of LEDS | Indicator - 16 LEDs Stop/Tail - 32 LEDs |
Indicator - 16 LEDs Stop/Tail - 16 LEDs Reverse - 16 LEDs |
| 4 | Current Draw @ 13.8V | Ind - 0.22A Stop - 0.22A Tail - 0.37A @ 13.8V |
Ind - 0.22A Stop - 0.13A Tail - 0.33A Rev - 0.3A @ 13.8V |
| 5 | Lens Construction | Polycarbonate | Polycarbonate |
| 6 | Housing Construction | Polycarbonate | Polycarbonate |
| 7 | Mounting Hole Centres | 116mm or 195m x 50mm | 116mm or 195m x 50mm |
| 8 | Overall Dimensions | 285 x 105 x 27.5mm | 285 x 105 x 27.5mm |
| 9 | Cable Length | 300mm Tinned Copper | 300mm Tinned Copper |
| 10 | CTA Approval | CTA-061756 | CTA-061755 |
| 11 | Wiring | Earth - White Stop - Red Tail - Brown Indicator - Yellow |
Earth - White Stop - Red Tail - Brown Indicator - Yellow Reverse - Black |
