COMBINATION LAMPS
Enhance your vehicle’s lighting performance with the ROADVISION BR281 Series—designed to deliver style, safety, and reliability in one compact package. Combining Stop/Tail/Indicator or Stop/Tail/Indicator & Reverse functions with a striking sequential indicator, the BR281 Series offers a modern lighting solution that commands attention on the road. Featuring an integrated retro reflector for added visibility and ADR approval across all functions, these lamps are built with efficiency and durability in mind. The multi-volt 10–30V DC input and low current draw ensure compatibility with a wide range of vehicles, while the tough yet lightweight polycarbonate housing and lens provide long-lasting performance. Finished with a sleek mild tinted lens and gun metal grey chrome trim, the BR281 Series offers a clean, contemporary look that fits.
MULTI VOLT
10-30V DC
POLY CARBONATE LENS
POLYCARB HOUSING
ADR APPROVED
WATERPROOF
SEQUENTIAL INDICATOR
GLOW TAIL LIGHT
5 YEAR WARRANTY
FEATURES
- Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
- Sequential Indicator
- Grey Glowtech tail light
- Integrated Retro Reflector
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens
- Mild tinted lens and gun metal grey chrome finish

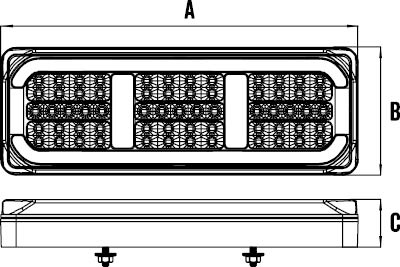

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | BR281ARR | BR281ARW |
|---|---|---|---|
| 1 | Description | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 200x100x37mm | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref 200x100x37mm |
| 2 | Input Voltage | 10-30 VDC | 10-30 VDC |
| 3 | Number of LEDS | Indicator - 15 LEDs Stop - 48 LEDs Tail - 36 LEDs |
Indicator - 15 LEDs Stop - 32 LEDs Tail - 36 LEDs Reverse - 16 LEDs |
| 4 | Current Draw @ 13.8V | Ind - 0.29A Stop - 0.33A Tail - 0.14A @ 13.8V |
Ind - 0.29A Stop - 0.2A Tail - 0.14A Rev - 0.26A @ 13.8V |
| 5 | Lens Construction | Polycarbonate | Polycarbonate |
| 6 | Housing Construction | Polycarbonate | Polycarbonate |
| 7 | Mounting Hole Centres | 120mm | 120mm |
| 8 | Overall Dimensions | 280 x 100 x 37mm | 280 x 100 x 37mm |
| 9 | Cable Length | 300mm Tinned Copper | 300mm Tinned Copper |
| 10 | CTA Approval | CTA-061824 | CTA-061819 |
| 11 | Wiring | Earth - White Stop - Red Tail - Brown Indicator - Yellow |
Earth - White Stop - Red Tail - Brown Indicator - Yellow Reverse - Black |
