COMBINATION LAMPS

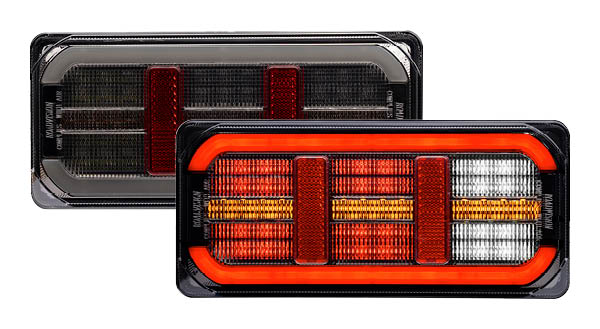

Upgrade your lighting game with ROADVISION’s BR220 Series, where innovation meets style. Designed to combine Stop, Tail, Indicator, and Reverse functions, these premium LED lamps feature the sophisticated Grey Glowtech tail light and sequential indicator for a standout modern touch. Built with safety and performance in mind, the BR220 Series delivers exceptional brightness, a remarkable lifespan of up to 100,000 hours, and the trusted durability of solid-state technology. ADR-approved and built to last, the BR220 Series boasts a lightweight yet sturdy polycarbonate housing and lens. Its gun metal grey chrome finish and subtly tinted lens create a sleek aesthetic, while the integrated retro reflector enhances visibility for added safety. With hassle-free installation and versatile application, the BR220 Series offers the perfect blend of reliability, functionality, and contemporary design.
MULTI VOLT
10-30V DC
POLY CARBONATE LENS
POLYCARB HOUSING
ADR APPROVED
WATERPROOF
SEQUENTIAL INDICATOR
GLOW TAIL LIGHT
5 YEAR WARRANTY
FEATURES
- Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
- Sequential Indicator
- Grey Glowtech tail light
- Integrated Retro Reflector
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens
- Mild tinted lens and gun metal grey chrome finish

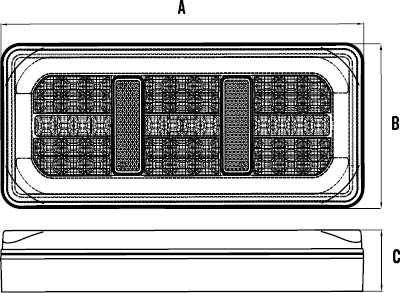

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | BR220ARR | BR220ARW |
|---|---|---|---|
| 1 | Description | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref Glowtech Tail 220x100x40mm | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref Glowtech Tail 220x100x40mm |
| 2 | Input Voltage | 10-30 VDC | 10-30 VDC |
| 3 | Number of LEDS | Indicator - 12 LEDs Stop - 36 LEDs Tail - 32 LEDs |
Indicator - 12 LEDs Stop - 24 LEDs Tail - 32 LEDs Reverse - 12 LEDs |
| 4 | Current Draw @ 13.8V | Ind - 0.23A Stop - 0.28A Tail - 0.22A @ 13.8V |
Ind - 0.23A Stop - 0.2A Tail - 0.22A Rev - 0.2A @ 13.8V |
| 5 | Lens Construction | Polycarbonate | Polycarbonate |
| 6 | Housing Construction | Polycarbonate | Polycarbonate |
| 7 | Mounting Hole Centres | 151mm | 151mm |
| 8 | Overall Dimensions | 220 x 100 x 40mm | 220 x 100 x 40mm |
| 9 | Cable Length | 300mm Tinned Copper | 300mm Tinned Copper |
| 10 | CTA Approval | CTA-061823 | CTA-061821 |
| 11 | Wiring | Earth - White Stop - Red Tail - Brown Indicator - Yellow |
Earth - White Stop - Red Tail - Brown Indicator - Yellow Reverse - Black |
