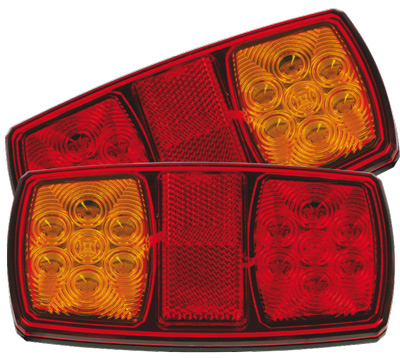

COMBINATION LAMPS BR206 SERIES

ROADVISION’s BR206 Series compact trailer lamps! The complete all-in-one fit and forget solution. Roadvision’s super bright LED combination lamps deliver the durability of maintenance free LED technology and greater visibility providing increased safety. Roadvision’s BR206 Series are the complete all in one solution with Stop, Tail, Indicator & Reflector all in the one lamp. The BR206 Series combination lamps produce more light output than incandescent lamps, whilst drawing a fraction of the current. Couple this with unbreakable polycarbonate lenses and an extremely tough housing manufactured from high impact ABS, these lamps are weather resistant and totally maintenance free, with a life span rated at 100,000 hours. With ROADVISION it’s FIT and FORGET.

12 VOLT
BR207

POLY CARBONATE LENS

HIGH IMPACT
ABS HOUSING

ADR APPROVED

WATERPROOF
SUBMERSIBLE

5 YEAR WARRANTY

FEATURES

  • Compact LED combination lamp
  • 12V DC input & low current draw
  • Brighter than conventional incandescent systems
  • 100,000 hour LED life span with solid state technology
  • Maintenance free
  • High impact ABS housing & sealed polycarbonate lens
  • Water and dust proof
  • Pre-wired with 300mm of sheathed tinned copper cable
  • Available in a DIY twin pack
  • Simple surface mount design
  • ADR/ECE approved for all functions

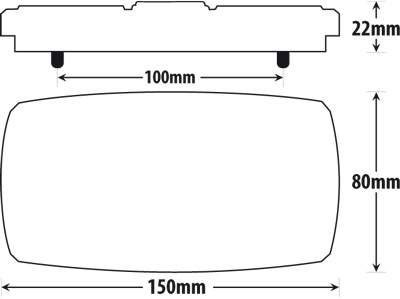

DIMENSIONS

RANGE SPECIFICATIONS

wdt_ID Part Number BR206LR
1 Description Rect Stop/Tail/Ind/Ref Twin Pack
2 Functions Stop/Tail & Indicator
3 Voltage Input 12V DC
7 Number of LED's Indicator - 7 LED's
Stop/Tail - 7 LED's
9 Current Draw Amps Ind - 0.1A @ 13.8V
S/T - 0.1/0.05A @ 13.8V
10 Dimensions AxBxC 150x80x22mm
11 Lens Construction Polycarbonate
12 Housing Construction High Impact ABS
13 Mounting Hole Centre 100mm
15 Cable Length 300mm Tinned Copper
