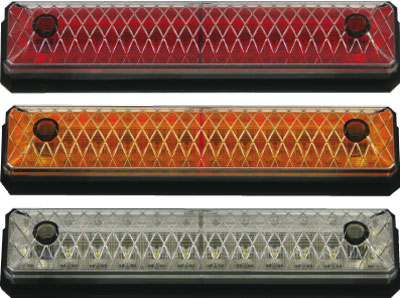

STOP/TAIL/IND/REV LAMPS
BR200 SERIES

ROADVISION’s BR200 Series LED signal lamps are a versatile slimline solution! Available in Stop/Tail, Indicator & Reverse functions all in a super slim line package, the BR200 Series are a simple DIY trailer lighting solution. Designed for applications where space is at a premium, they deliver the durability of maintenance free LED technology and greater visibility providing increased safety. BR200’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple surface mount design. Roadvision’s BR200 Series signal lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.

MULTI-VOLT
10-30 VOLT

POLY CARBONATE LENS

POLY CARBONATE HOUSING

ADR APPROVED

WEATHERPROOF

5 YEAR WARRANTY

RANGE FEATURES

  • Compact slimline LED signal lamps
  • Multi-volt 10-30V DC input & low current draw
  • Brighter than conventional incandescent systems
  • 100,000 hour LED life span with solid state technology
  • Maintenance free
  • Sealed polycarbonate lens & housing
  • Water and dust proof
  • Pre-wired with 300mm of sheathed tinned copper cable
  • Simple surface mount design
  • ADR/ECE approved for all functions

DIMENSIONS

RANGE SPECIFICATIONS

wdt_ID Part Number BR200R BR200A BR200W
1 Description Rect Stop/Tail Rear Lamp Rect Indicator Rear Lamp Rect Reverse Rear Lamp
2 Functions Stop/Tail Indicator Reverse
3 Voltage Input 10-30V DC 10-30V DC 10-30V DC
7 Number of LED's 24 LED's 24 LED's 24 LED's
9 Current Draw Amps 0.2/0.05A @ 13.8V 0.2A @ 13.8V 0.2A @ 13.8V
10 Dimensions AxBxC 205x40x28mm 205x40x28mm 205x40x28mm
11 Lens Construction Polycarbonate Polycarbonate Polycarbonate
12 Housing Construction Polycarbonate Polycarbonate Polycarbonate
13 Mounting Hole /Cut Out 160mm 160mm 160mm
15 Cable Length 300mm Tinned Cable 300mm Tinned Cable 300mm Tinned Cable
