COMBINATION LAMPS
Experience the perfect fusion of functionality and style with ROADVISION’s BR125 Series. Designed to meet all your lighting needs, these all-in-one lamps seamlessly integrate Stop, Tail, Indicator, and Reverse functions into a contemporary, robust package. Engineered with advanced solid-state technology, the BR125 Series offers powerful illumination, enhanced safety, and a remarkable lifespan of up to 100,000 hours. Fully ADR-compliant, these lamps are crafted with a durable yet lightweight polycarbonate housing and lens, ensuring reliable performance in demanding conditions. The sleek tinted lens and gun metal grey chrome finish deliver a modern look, while the integrated retro reflector maximizes visibility for added safety. With its straightforward surface-mount design and maintenance-free operation, the BR125 Series is the go-to solution for dependable, stylish combination lighting.
MULTI VOLT
10-30V DC
POLY CARBONATE LENS
POLYCARB HOUSING
ADR APPROVED
WATERPROOF
5 YEAR WARRANTY
FEATURES
- Stop/Tail Indicator or Stop/Tail Indicator & Reverse functions
- Integrated Retro Reflector
- Multi-volt 10-30V DC input & low current draw
- 100,000HR rated LED lifespan with solid state technology
- Simple surface mount design
- ADR approved for all functions
- Light weight tough polycarbonate housing & lens
- Mild tinted lens and gun metal grey chrome finish

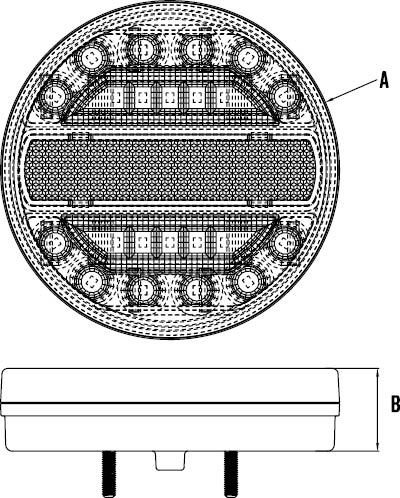

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | BR125ARR | BR125ARW |
|---|---|---|---|
| 1 | Description | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Ref 125x32mm | LED Rear Combination Lamp 10-30V Stop/Tail/Ind/Rev/Ref 125x32mm |
| 2 | Input Voltage | 10-30 VDC | 10-30 VDC |
| 3 | Number of LEDS | Indicator - 10 LEDs Stop/Tail - 12 LEDs |
Indicator - 5 LEDs Stop/Tail - 12 LEDs Reverse - 5 LEDs |
| 4 | Current Draw @ 13.8V | Ind - 0.25A Stop - 0.19A Tail - 0.03A @ 13.8V |
Ind - 0.13A Stop - 0.19A Tail - 0.03A Rev - 0.18A @ 13.8V |
| 5 | Lens Construction | Polycarbonate | Polycarbonate |
| 6 | Housing Construction | Polycarbonate | Polycarbonate |
| 7 | Mounting Hole Centres | 45mm | 45mm |
| 8 | Overall Dimensions | 125 x 32mm | 125 x 32mm |
| 9 | Cable Length | 300mm Tinned Copper | 300mm Tinned Copper |
| 10 | CTA Approval | CTA-061779 | CTA-061782 |
| 11 | Wiring | Earth - White Stop - Red Tail - Brown Indicator - Yellow |
Earth - White Stop - Red Tail - Brown Indicator - Yellow Reverse - Black |
