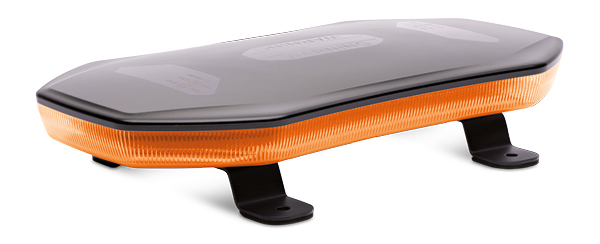

The Revolver RLB402 Series low profile mini light bars are the pinnacle in vehicle roof top emergency lighting. Featuring 360 degree high intensity LEDs and 10 selectable flash patterns, the RLB402 Series provide high penetration, high level lighting, from a truly compact yet robust package. Roadvision’s high performance Revolver Series emergency lamps are manufactured with LED’s (Light Emitting Diodes), rather than regular halogen or xenon strobe bulbs, providing a 100,000 hour rated LED lifespan. With both a polycarbonate housing and lenses, IP67 (waterproof) and SAE Class 1, CISPR25 Class 3 ratings, the RLB402 Series robust construction provides a weatherproof, high performance light bar with no maintenance required. Whether it’s through dust, mist or fog, the REVOLVER Series LED compact light bars ensure vehicle visibility in even the toughest conditions.
MULTI-VOLT
10-30 VDC
POLYCARB LENS
POLYCARB HOUSING
WATER & DUST PROOF
HIGH INTENSITY LED BAR
VIBRATION PROOF
CLASS 3 APPROVED
CLASS 1 APPROVED
5 YEAR WARRANTY
RANGE FEATURES
- Low profile 10 function 360° high intensity LED mini light bars
- Single, strobe, triple, simulated rotating & combination flash patterns
- Multi-volt 10-30V input & low current draw
- 48 SMD LED’s produce 40W
- 100,000 hour rated LED lifespan
- Maintenance free solid state technology
- Tough polycarbonate lens & housing
- Waterproof IP67 rated and vibration proof
- Compact low profile 398 x 217 x 47mm body
- Available in fixed or magnetic mounts
- EMC, ECE R65/R10 & SAE J845 class 1 approved
FLASH PATTERNS
- Single Flash (ECE, By day): 480 ms
- Single Flash (ECE, By night): 480 ms
- Single Flash (CT13): 800 ms
- Double Flash: 480 ms
- Triple Flash: 480 ms
- Clockwise rotation: 800 ms
- Single (Left & Right) Half: 480 ms
- Triple (Middle) + Triple (Two ends) + Triple (Full) : 2700 ms
- LHS & RHS “C” shape: 800 ms
- Progressive (Left) + Progressive (Right): 2400 ms

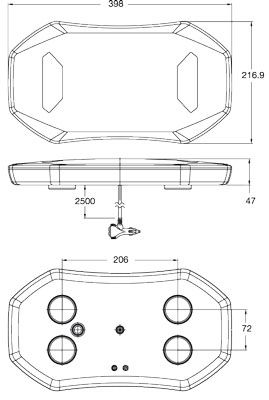

DIMENSIONS
MAGNETIC
FIXED
RANGE SPECIFICATIONS
| wdt_ID | Part Number | RLB402MY | RLB402MYC | RLB402Y | RLB402YC |
|---|---|---|---|---|---|
| 1 | Description | Low Profile Mini Bar LED 10-30V 10 Flash Patterns Amber Magnetic Mount | Low Profile Mini Bar LED 10-30V 10 Flash Patterns Amber / Clear Lens Magnetic Mount | Low Profile Mini Bar LED 10-30V 10 Flash Patterns Amber Fixed Mount | Low Profile Mini Bar LED 10-30V 10 Flash Patterns Amber / Clear Lens Fixed Mount |
| 2 | Function | 10 Selectable Flash Patterns | 10 Selectable Flash Patterns | 10 Selectable Flash Patterns | 10 Selectable Flash Patterns |
| 3 | Light Source | 80 x 1W LED’s | 80 x 1W LED’s | 80 x 1W LED’s | 80 x 1W LED’s |
| 4 | Flash / Rotation Rate | 10 Flash Patterns | 10 Flash Patterns | 10 Flash Patterns | 10 Flash Patterns |
| 5 | Dimensions | 398x217x47mm | 398x217x47mm | 398x217x47mm | 398x217x47mm |
| 6 | Current Draw Amps | 3.3 - 4.2A | 3.3 - 4.2A | 3.3 - 4.2A | 3.3 - 4.2A |
| 7 | Mounting Type | Magnetic Mount | Magnetic Mount | Fixed 206x72mm Centre to Centre | Fixed 206x72mm Centre to Centre |
| 9 | Wiring | 2500mm Lead with Cig.Plug | 2500mm Lead with Cig.Plug | 500mm Sheathed | 500mm Sheathed |
| 10 | Approvals | ECE R65 Class 2 ECE R10 SAE Class 1 CISPR25 Class 3 |
ECE R65 Class 2 ECE R10 SAE Class 1 CISPR25 Class 3 |
ECE R65 Class 2 ECE R10 SAE Class 1 CISPR25 Class 3 |
ECE R65 Class 2 ECE R10 SAE Class 1 CISPR25 Class 3 |
ACCESSORIES
RLB400MB
Mounting Bracket Fixed Mount Suit RLB402Y
