DOMINATOR DL SERIES

The Dominator DL Series by Roadvision is the next generation in LED driving lamps, with exceptional lighting performance, in a compact yet rugged package. Producing up to 9640lm of instant light output from premium 3W Osram hi-lux LED’s, packaged in a tough yet light weight die-cast aluminium housing & polycarbonate lens, the Dominator Series provide superior performance and durability. Available in 6″, 7″ & 9″ models, they feature an additional DL LED strip and protective front grill. Perfect for smaller SUV’s and passenger vehicles, the 6” slim line design allows installation into even the tightest applications without compromising on lighting performance.

MULTI-VOLT
9-32 VDC

POLYCARB LENS

COLOUR TEMP

WATER & DUST PROOF

OVER/UNDER VOLTAGE PROTECTION

DEUTSCH CONNECTOR

REVERSE POLARITY PROTECTION

3W OSRAM HI-LUX LEDS

RADIO INTERFERENCE APPROVED

7 YEAR WARRANTY

RANGE FEATURES

  • Dominator DL Series driving lamps produce up to 9640lm of instant light output
  • Additional Daylight LED strip & protective front grill
  • Super slim line housing 70mm deep

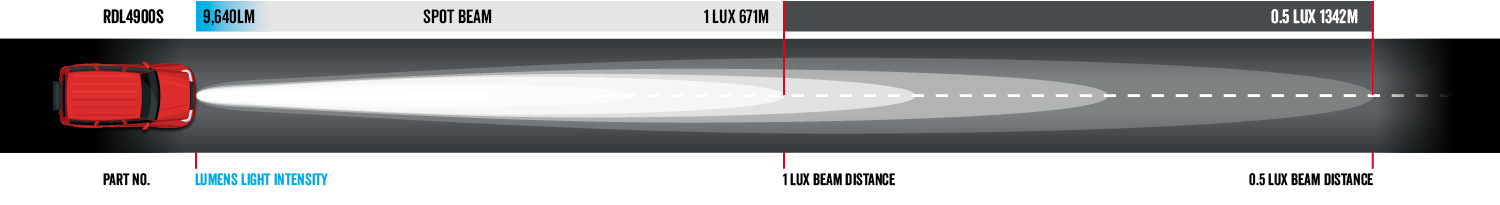

  • Advanced optics produces up to 1342m Spot beam
  • 3W Osram Hi-Lux LED’s produce super white light close to daylight
  • Multi-volt 9-32V DC input & Super low current draw
  • 50,000 hour LED lifespan with solid state technology
  • Light weight tough die-cast aluminium housing & polycarbonate lens
  • Water & dust proof IP67 rated
  • Simple 3 wire installation with Deutsch plug
  • Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

RDL4600S DIMENSIONS

RDL4700S DIMENSIONS

RDL4900S DIMENSIONS

RANGE SPECIFICATIONS

wdt_ID Part Number RDL4600S RDL4700S RDL4900S
1 Description DL Series 6" Round 14 LED DL Series 7" Round 16 LED DL Series 9" Round 34 LED
2 Beam Type Spot Beam with Daylight Strip Spot Beam with Daylight Strip Spot Beam with Daylight Strip
3 Lumens Light Output (Effective) 3780lm 4540lm 9640lm

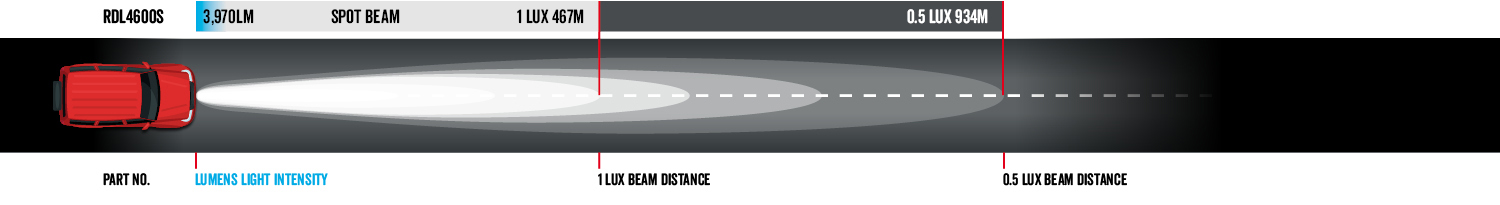

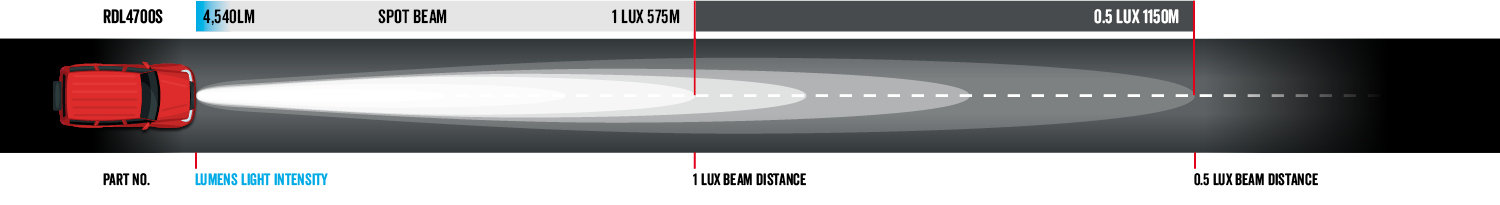

4 Beam Distance 934m 1150m 1342m
5 Total Watts 42W 48W 102W
6 Light Source 14x3 Watt Osram LED's + DL 16x3 Watt Osram LED's + DL 34x3W Osram LED's + DL
7 Voltage Input 9-32V DC 9-32V DC 9-32V DC
8 Current Draw Amps 2.9A @ 13.8V 4.2A @ 13.8V 7.8A @ 13.8V
9 Dimensions AxBxC 164x83x168mm 187x78x193mm 238x93x249mm
10 Lamp Diameter 6" (164mm) 7" (187mm) 9" (238mm)
