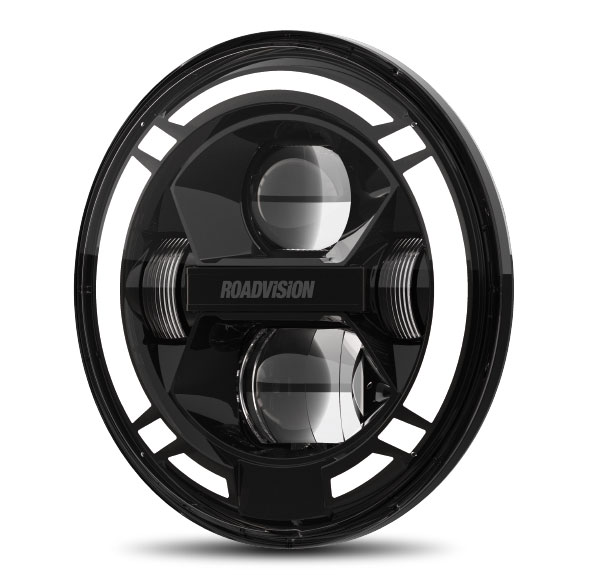

Upgrade your vision with our new 7” LED Headlight Inserts – engineered for modern performance and built to outlast your vehicle. A sleek black housing and crisp 5700K white output deliver a bold, contemporary look on the road, while solid‑state LED technology provides an incredible 100,000‑hour lifespan with virtually zero maintenance. Designed to replace standard 7” units, these inserts combine lightweight die‑cast aluminium construction, an unbreakable polycarbonate lens, and IP69K protection for maximum durability in any environment. With multi‑volt compatibility, ADR/ECE approval, and pre‑wired H4 connectivity, installation is simple and reliable. Available in both High/Low Beam and dedicated High Beam versions, delivering powerful performance of
1 Lux at 252m on high beam and 1 Lux at 100m on low beam. Stronger. Brighter. Smarter. Built for the long haul.
MULTI-VOLT
10-30 VDC
POLYCARB LENS
POLYCARB HOUSING
COLOUR TEMP
IP PROTECTION
5 YEAR WARRANTY
RANGE FEATURES
- Replaces existing 7” headlight units
- Sleek modern black design with Integrated Park Light
- 5700K crisp white light output
- 100,000‑hour LED lifespan with solid‑state technology
- Super low power consumption
- Lightweight die‑cast aluminium housing
- Unbreakable polycarbonate lens
- IP69K ingress protection
- ADR/ECE approved
- Multi‑volt compatible
- Available in High/Low Beam and dedicated High Beam versions
- Pre‑wired H4 plug

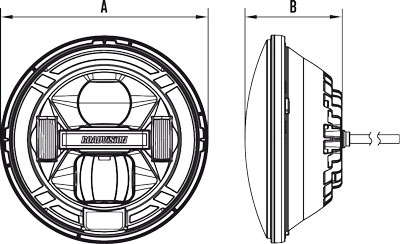

DIMENSIONS
RANGE SPECIFICATIONS
| wdt_ID | Part Number | RHL07HB | RHL07HLB |
|---|---|---|---|
| 1 | Description | 7” LED Headlamp Insert High Beam | 7” LED Headlamp Insert High/Low Beam |
| 2 | Functions | High Beam, Parking | High Beam, Low Beam & Parking |
| 3 | Maximum Lumens | High Beam 1800lm | High Beam 1800lm, Low Beam 1000lm |
| 7 | Input Voltage | 10-30VDC | 10-30VDC |
| 9 | Maximum Watts | High Beam 21W, Park 4W | High Beam 21W, Low Beam 10.8w, Parking 4W |
| 10 | Number of LED’s | High Beam 4 LED’S, Park 33 LED’S | High Beam 1 LED’S, Low Beam 3 LED’s, Parking 33 LED’S |
| 11 | Current Draw @ 13.8V | High Beam 1.6A, Park 0.3A | High Beam 1.8A, Low Beam 1.3A, Parking 0.3A |
| 12 | Metres @ 1 Lux | High Beam 252m | High Beam 252m, Low Beam 100m |
| 21 | Lens Construction | Polycarbonate | Polycarbonate |
| 13 | Housing Construction | Aluminium | Aluminium |
| 20 | Colour Temperature | 5700k | 5700k |
| 15 | IP Rating | IP67, IP69K | IP67, IP69K |
| 16 | Dimensions - A x B | 178 x 83mm | 178 x 83mm |
| 19 | Approvals | ADR Approved CTA-062225 |
ADR Approved CTA-062224 |
| 22 | Wiring | 500mm sheath cable with H4 connector | 500mm Sheath Cable with H4 Connector |
| 24 |
BEAM DIAGRAM – RHL07HB

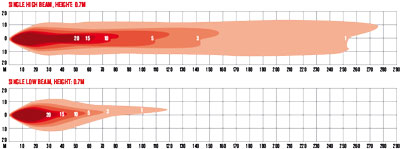

BEAM DIAGRAM – RHL07HLB
